Instrumentation Industries

• Single Patient Reuse - Can be used to repeatedly administer medications to one single patient while installed in a breathing circuit
• For use at the Endotracheal Tube
• 22 mm ID inlet x 15 mm ID/22 mm OD outlet
• Directs medication mainstream for ventilator patients
• Arrows clearly mark direction of airflow
• Accepts plastic or metal tipped Standard MDI Canisters
• Polystyrene butadiene
• Thermoplastic Rubber Cap

• Use between wye and endotracheal tube adapter
• 22 mm ID inlet x 15 mm ID/22 mm OD outlet
• Directs medication mainstream for ventilator patients
• Arrows clearly mark direction of airflow
• Six inches of tubing can be added to create a chamber when applicable
• Accepts plastic or metal tipped metered dose inhaler canisters
• Polystyrene butadiene

• Always pliable for easy connections
• Reusable
• Autoclavable
• Remains pliable after sterilization
• Cost effective
• 22 mm ID x 22 mm ID
• Silicone rubber

• Single Patient Reuse - Can be used to repeatedly administer medications to one single patient while installed in a breathing circuit
• For use at the Endotracheal Tube
• 22 mm ID inlet x 15 mm ID/22 mm OD outlet
• Directs medication mainstream for ventilator patients
• Arrows clearly mark direction of airflow
• Accepts plastic or metal tipped Standard MDI Canisters
• Polystyrene butadiene
• Thermoplastic Rubber Cap

• Reusable

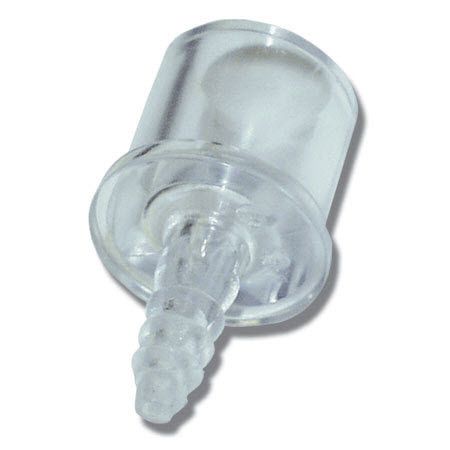

• Hose barb
• 22 mm ID/30 mm OD
• Polycarbonate

Key Benefits:

• Always pliable for easy connections
• Reusable
• Autoclavable
• Remains pliable after sterilization
• Cost effective
• 27 mm ID x 22 mm ID
• Silicone rubber

• Reusable
• 15 mm OD equipment connection x 15 mm ID patient connection
• Comes with both Suctioning and Fiber-Optic Silicone Rubber Caps
• Caps are easily interchanged allowing use of fiber-optic or suctioning equipment
• Fiber-optic Cap allows access of fiber-optic bronchoscope without significant loss of PEEP
• Smooth surfaces are gentle to expensive bronchoscopy equipment
• Silicone rubber caps
• Polyetherimide

Key Benefits:

• Reusable
• Can be used for reducing adult to pediatric
• Autoclavable
• Remains pliable after sterilization
• Cost effective
• 22 mm ID x 15 mm ID
• Silicone rubber

• Single Patient Reuse - Can be used to repeatedly to administer medications to one single patient while installed in a breathing circuit
• For use at the Endotracheal Tube
• 15 mm OD inlet x 15 mm ID/22 mm OD outlet
• Directs medication mainstream for ventilator patients
• Arrows clearly mark direction of airflow
• Accepts plastic or metal tipped Standard MDI Canisters
• Polystyrene butadiene
• Thermoplastic Rubber Cap

• Latex-Free
• 2 liter bag
• 22 mm ID
• Ideal for various respiratory and anesthesia applications
• Replacement bag for SG 146
• Green neoprene

• Single Patient Use
• Fits standard size outlet 9/16-18
• ABS

• Single Patient Use
• For use with endotracheal and tracheostomy tubes
• Essential for ICU and emergency departments
• Saves time and adds to patient comfort
• Also used with inflatable face masks

• Reusable
• Adult, pediatric/neonatal flowmeter mount
• For bags weighing more than 3 oz (90g)
• Provides immediate oxygen flow when resuscitator bag is lifted from lever arm
• On/off action is controlled by lifting/replacing resuscitator bag on lever arm
• Excellent for all ICU environments and emergency or trauma rooms
• Forked lever arm does not require bag hanger
• Sturdy anodized aluminum construction

• Reusable
• Dual purpose design allows for use with small bore tubing connection or 1/4" NPT, rear or bottom port
• Fits all Instrumentation Industries Vacuum/Pressure and NIF monitors
• Shock absorbent material helps prevent Gauge and crystal breakage
• "Clam shell" design locks securely to hold Gauge in place
• Unique ribbed design provides maximum shock protection
• Melt processable rubber

Inline aerosol tee adapter for use with the Combivent® Respimat® inhaler.

• Port Sizes:
  Inlet: 22mm O.D.
  Outlet: 22mm I.D.
• Size:
  Length: 3 in
  Height: 2.4 in
  Body Width: 1 in
  Wye Angle: 45°
  Cap Width: 1.3 in (at widest point)
• Materials:
  Body: Polystyrene-Butadiene
  Cap: Theromplastic Rubber
• Color:
  Body: Clear
  Cap: Clear
• Use: Single Patient Reuse (Can be used to deliver medication multiple times to a single patient while installed in a breathing circuit.)

• Reusable
• Reads +/- 60 cm H2O in 2 cm dial markings
• Bottom 1/8 inch small bore tubing connection
• For CPAP systems or neonatal applications

• Reusable
• Nylon coated 8 inch stainless steel
• Securely fastens flowmeter to oxygen wall plate
• Eliminates misplaced flowmeter
• Keeps flowmeter immediately available when needed
• Durable steel construction
• Easily installed

• Reusable
• Reads +/- 60 cm H2O in 2 cm dial markings
• Bottom 1/8 inch small bore tubing connection
• Includes adapter BE 148-6
• Safe, easy method for determining negative inspiratory force
• Resettable pointer captures patients highest effort

• Single Patient Reuse - Can be used to repeatedly administer medications to one single patient while installed in a breathing circuit
• For use at the Endotracheal Tube
• Kit includes:
• • 1 RTC 24-V, 22 mm ID inlet x 15 mm ID/22 mm OD outlet
  • 1 KC 2124 Adapter
  • 4-inch length of tubing
• Directs medication mainstream for ventilator patients
• Arrows clearly mark direction of airflow
• Accepts plastic or metal tipped Standard MDI Canisters
• Polystyrene butadiene
• Thermoplastic Rubber Cap

• Directs medication mainstream for ventilator patients
• Arrows clearly mark direction of airflow
• Six inches of tubing can be added to create a chamber when applicable
• Accepts plastic or metal tipped metered dose inhaler canisters
• 15 mm OD inlet x 15 mm ID outlet
• Polystyrene butadiene

• Single Patient Use
• Green/Oxygen
• Fits standard size outlet 9/16-18
• ABS

• Single Patient Use
• Fits standard size outlet 9/16-18
• ABS

• Single Patient Use
• Swivel fits standard size outlet 9/16-18
• ABS

• Reusable
• 750 mL capacity
• Heavy wall latex free neoprene, for testing ventilators, resuscitators, etc
• 22 mm ID connection
• Not for patient use
• Cannot be cleaned with alcohol
