ICU Medical

Coach 2® Incentive Spirometer features include: * One-way Valve * Flexible Tubing * Brightly Colored Piston * Universal graphics * Instructions For Use in Base * Oxygen port * Bedrail holder

Pneupac ParaPAC Plus Single Limb Circuit is available with or without a PEEP valve. * Single Limb Circuit * Pneupac ParaPAC Plus * Vent * Expiratory * Port * Flow Diverter * Available with or without PEEP valve

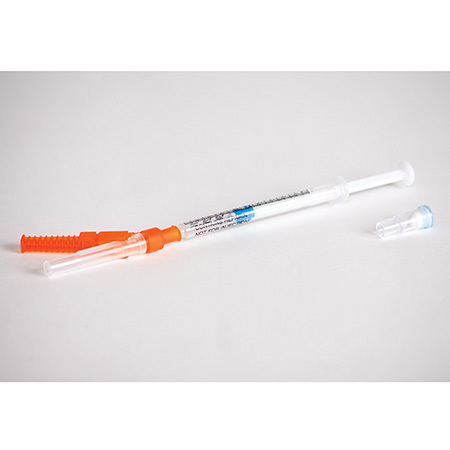

Pro-Vent® Plus Arterial Blood Sampling Kit includes: * Dry Lithium Heparin * Luer Lock Syringe with Filter-Pro® Device * Point-Lok® Device * Sterile * Single Use

Line Draw Plus aspirating syringes, with a variety of lithium heparin concentrations, allow for blood sampling directly from an arterial line. The syringes use an advanced formula of dry lithium heparin for consistent and accurate readings. They are available with the following configurations: * 1mL Luer Slip Syringe * 3mL Luer Lock Syringe * 3mL Luer Slip Syringe Key benefits: * 3mL Line Draw * Luer slip syringe * Optional Filter-Pro® device * Single Use Optional Support Kit also includes: * Biohazard Labeled Ice Bag * Poly Bag Packaging

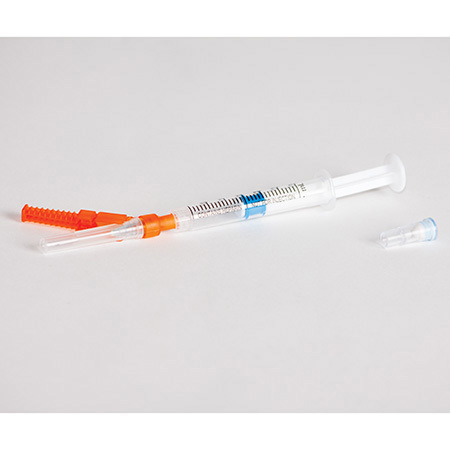

Pro-Vent® Plus Arterial Blood Sampling Kit includes: * Dry Lithium Heparin * Luer Slip Syringe with Filter-Pro® Device * Point-Lok® Device * Iodophor Prep Pad * Sterile * Single Use * Support Kit: * Alcohol Prep Pad * Gauze Pad * Patient Label * Biohazard Labeled Ice Bag * Adhesive Bandage

Bivona® Adult TTS™ Tracheostomy Tube features include: * Deflated silicone cuff adds no distinguishable dimension to shaft * Clip-in obturator with hollow tip allows for tube change over guide wire * Silicone remains soft and flexible in the trachea * Twill trach tie * Cap plug * Sterile

Key Benefits: * Maximum Internal Diameter * 360 Degree Swivel * Adjustable tubing * 15 mm ID Connector * 22 mm OD/15 mm ID Straight Adapter

402 Series Thermistor Esophageal Stethoscope features include: * Exceptional sound quality * Smooth, heat-bonded cuff to tube transition minimizes potential for esophageal irritation * Long lead wires ensure that the connection to cable is away from patient's face * Insulated sensor cap decreases risk of patient shock or burn during electro-cautery * Temperature Sensor * Disposable * Sterile

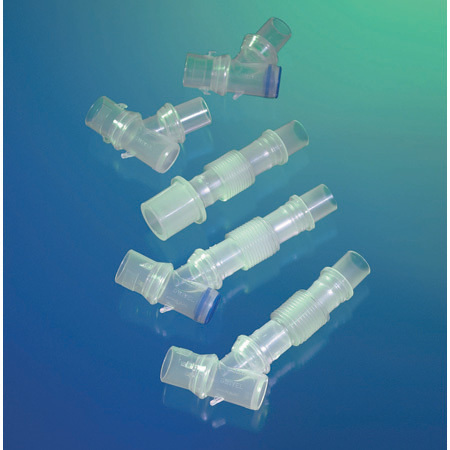

Flexible UltraSet® Double Swivel Elbow features include: * Maximum Internal Diameter * 360 Degree Swivel * Adjustable tubing

Key benefits: * Moisture Output: 25 mg H2O/L at 34°C for 1000 ml tidal volume * Resistance to Flow: 2.0 cm H2O at 60 LPM * Media: Corrugated paper * Weight: 5 grams * Dead Space: Not relevant * Connection: 15 mm ID raised fenestration on patient end * Sterile * Single Use

Bivona® Decannulation Cap is a tracheostomy tube accessory for use after inner cannula is removed.

Breathing Filter features include: * Filtration Efficiency: >99.9% * Resistance to Flow: * 1.0 hPa (1.0 cm H2O) at 0.5 L/sec (30 LPM) * 2.0 hPa (2.0 cm H2O) at 1.0 L/sec (60 LPM) * 3.5 hPa (3.5 cm H2O) at 1.5 L/sec (90 LPM) * Media: Electrostatically-charged polypropylene * Method of Filtration: Electrostatic attraction, torturous path, depth * Weight: 32 grams * Dead Space: 44 ml * Connections: 15 mm ID x 22 mm OD on patient end; 22 mm ID on circuit end

Connector features include: * Plastic, One Piece Construction * Internal Seal * Xmas Tree Style * Clear

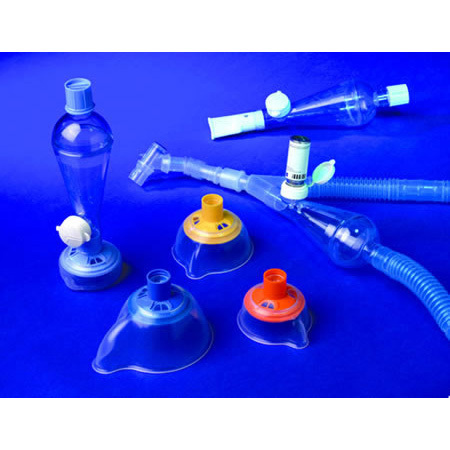

26-11-1010EA: ACE® MDI Spacer features include: * Versatile design * Unique cone-shaped design * Non-Sterile26-11-1020EA: ACE® MDI Spacer Kit features include: * Holding Chamber * Inspiratory coaching adapter * Inspiratory valved mouthpiece * Canister Holder * Versatile design * Unique cone-shaped design * Non-Sterile26-11-1030: ACE® MDI Spacer Adapter features include: * Inspiratory coaching adapter * Inspiratory valved mouthpiece * Non-Sterile

Each uncuffed neonatal/pediatric tracheal tube is fitted with a standard 15 mm ISO connector with sideport. The sideport facilitates easy access for administration of surfactant, airway pressure monitoring, and gas sampling. The tubes are made of soft PVC with a smooth beveled tip for atraumatic intubation and have markings, plus a vocal cord guide, that aid in proper placement. Features: * Smooth beveled tip helps provides atraumatic intubation * Low dead space connector option helps minimize mechanical dead space and subsequent carbon dioxide rebreathing * Improves ventilation in patients with low tidal volumes

The SidePort™ AutoControl™ Airway Connector is used in conjunction with the Bivona® Fome-Cuf® system.

SACETT™ Endotracheal Tube features include: * Smooth cuff-to-tube weld * Polished finish to tube tip & Murphy eye * Intubation depth marker * Blue inflation line * Sensitive pilot balloon * Clear tube identification marking * Soft Seal Cuff®: * Cuff has minimal bulk when deflated * Tapered shape for dynamic movement during the breathing cycle * Velvet soft feel * Larger cuff resting diameter * Reduced nitrous oxide permeation

Profile Soft Seal® Cuff Oral/Nasal Endotracheal Tube features include: * 15 mm ISO Connector * Large Pilot Balloon * Spring-Loaded One-Way Valve * Clear PVC * Sterile

Key Benefits: * Clear Plastic * NIF Port * Directional Arrows * Non-Rebreathing

PEEP-Keep™ dual-axis swivel adapter helps reduce potential for oxygen deprivation and resulting cardiopulmonary distress. Permits suctioning without disconnecting the ventilator circuit. Key Benefits: * Angled 15mm Termination * Dual-Axis Swivel Adapter * Single Use * Available in sterile and non-sterile

Pulsator® Plus Arterial Blood Sampling Kit features include: * 3 ml Luer lock syringe with Filter-Pro® device * Tyvek® Packaging * Support Kit: * Alcohol Prep Pad * Iodophor Prep Pad * Gauze Pad * Biohazard Labeled Ice Bag * Adhesive Bandage

The Portex® SuctionPro 72™ Closed Ventilation Suction System is a single patient use suctioning device for the removal of secretions from the tracheobronchial tree of ventilator dependent adult patients. Intended for 72-hour use. Key benefits: * 3-day recommended duration of use. * Clear pathway evacuation port. * Lockable thumb valve end cap. * Sterile, single patient use. * Patient label with day of the week stickers. * Clear T piece for visualization of the pathway. * Soft but strong catheter sleeve. * Trac-Wedge™ device to aid in disconnection of the catheter from the patient’s tracheal or tracheostomy tube.

Airway Adapter, 12.7mm ID x 15mm OD, Straight, Without Filter, for Use with Capnocheck Plus

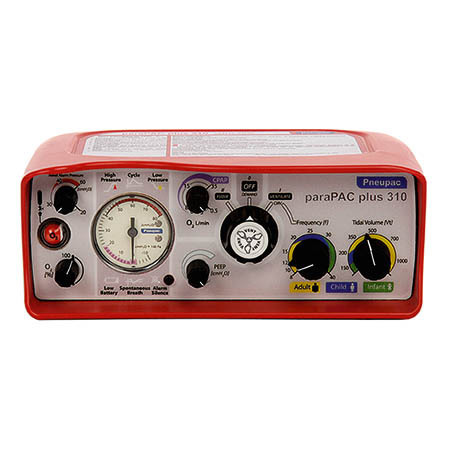

The paraPAC plus gives you the versatility to deliver mechanical ventilation, demand and free flow oxygen therapy and CPAP all from one compact, lightweight unit. It enables greater control of breathing parameters. The dual controls allow easy selection of tidal volume and frequency to match your patients ventilatory requirements. The paraPAC plus is designed for use by respiratory therapists, paramedics, trained emergency personnel and military in a wide range of environments. This includes the use in hospitals and in more demanding locations such as ambulances, aircraft, outdoors and in MRI scanners. This ventilator is tested for these extreme situations to ensure the optimum patient care can be delivered by the user. Suitable for ventilation during emergency or controlled transportation of adults, children and infants. MRI compatibility gives maximum flexibility for transport within the hospital.
