Suction Regulators

Specifications:

• Bottom Connection (inlet) - Tubing Nipple
• Gauge Range: 0-300mmHg - Full Vacuum
• Gauge Accuracy:
  Analog: ± 5% of Max
  Digital Gauge: ± 1% of Full Scale
  Analog Gauge: ± 5% of MAX within ref. indicator
• Maximum Vacuum:
  REG. Mode @ Full Vac - 396 mmHg
• Weight: 1.1 lbs. (.48 kg)
• Dimensions: 3.7 in. (9.4 cm), 2.8 in. (7.1 cm), 5.2 in. (13.2 cm)

• Shatter Resistant Trogamid Bottle
• Lightweight Nylon Float
• Positive Shut-Off Disc Seal
• Designed for Easy Disassembly
• Hose Barb

The unique modular design makes repair a breeze for any biomed or central supply department. The unit is made up of six (6) easy-to-replace modular components. Unlike the normal plastic inlet and outlet connections on most units, the cast metal backplate connections are extremely durable, thereby saving unnecessary repair costs. As a result of its modular design, the unit is 25-50 percent smaller than other suction regulators making it the product of choice for crowded wall and rail areas. The case is made of strong ABS plastic. It features a smooth surface with rounded corners making cleaning easy. The case also houses the gauge for extra protection. The large control knob with its three (3) easy-to-read settings make vacuum adjustments simple, even in emergency situations.

Specifications:

• Gauge Range:
  PM3300: 0-200mmHg - Full Vacuum
  PM3300HV: 0-300mmHg - Max Vacuum
  PM3400: 0-150mmHg
• Gauge Accuracy:
  Analog: ± 5% of Max
  Digital Gauge: ± 1% of Full Scale
  Analog Gauge: ± 5% of MAX within ref. indicator
• Vacuum Ports: 1/8 NPT Female
• Modes: LINE, OFF, REG
• Maximum Vacuum:
  PM3300: REG. Mode @ Full Vac - 396 mmHg
  PM3400: Restricted to 170 mmHg (23 kPa) ± 10 mmHg
• Weight: 1.1 lbs
• Dimensions: 3.7in L x 2.8in W x 5.2in H
• Battery: 3 Volt Lithium, ½ AA (Digital Vacuum Gauge Models ONLY)

The unique modular design makes repair a breeze for any biomed or central supply department. The unit is made up of six (6) easy-to-replace modular components. Unlike the normal plastic inlet and outlet connections on most units, the cast metal backplate connections are extremely durable, thereby saving unnecessary repair costs. As a result of its modular design, the unit is 25-50 percent smaller than other suction regulators making it the product of choice for crowded wall and rail areas. The case is made of strong ABS plastic. It features a smooth surface with rounded corners making cleaning easy. The case also houses the gauge for extra protection. The large control knob with its three (3) easy-to-read settings make vacuum adjustments simple, even in emergency situations.

Specifications:

• Gauge Range:
  PM3000: 0-200mmHg
  PM3000HV: 0-300mmHg
  PM3100: 0-200mmHg
  PM3100HV: 0-300mmHg
  PM3500: 0-150mmHg
  PM3500E 0-200mmHg
• Gauge Accuracy:
  Analog: ± 5% of Max
  Digital Gauge: ± 1% of Full Scale
  Analog Gauge: ± 5% of MAX within ref. indicator
• Vacuum Ports: 1/8 NPT Female
• Modes:
  PM3100 Series: LINE, OFF, REG
  PM 3000 & PM3500 Series: OFF, REG
• Maximum Vacuum:
  PM3000 & PM3100: REG. Mode @ Full Vac - 396 mmHg
  PM3500D: Restricted to 170 mmHg (23 kPa) ± 10 mmHg
  PM3500E: Restricted to 160 mmHg (21 kPa) ± 10 mmHg
• Weight: 1.1 lbs
• Dimensions: 3.7 in L x 2.8 in W x 5.2 in H
• Battery: 3 Volt Lithium, ½ AA (Digital Vacuum Gauge Models ONLY)

Preset your desired suction level. When activated, the preset level and gauge reading can be used to check for system leaks. The case is made of ABS plastic and houses the gauge for extra protection.

Specifications:

• Gauge Accuracy:
  Analog: ± 5 % of Max

  Digital Gauge: ± 1% of Full Scale
  Analog Gauge: ± 5% of MAX within ref. Indicator
• Vacuum Ports: 1/8 NPT Female
• Modes: LINE - OFF - REG
• Maximum Vacuum:

  PM3300: REG. Mode @ Full Vac - 396 mmHg (53 kPa)
  PM3400: Restricted to 170 mmHg (23 kPa) ± 10 mmHg (1.3 kPa)
• Weight: 1.1 lbs. (.48 kg)
• Dimensions: Length: 3.7 in. (9.4 cm), Width: 2.8 in. (7.1 cm), Height: 5.2 in. (13.2 cm)
• 3 Volt Lithium, ½ AA (Digital Vacuum Gauge Models ONLY)

The unique modular design makes repair a breeze for any biomed or central supply department. The unit is made up of six (6) easy-to-replace modular components. Unlike the normal plastic inlet and outlet connections on most units, the cast metal backplate connections are extremely durable, thereby saving unnecessary repair costs. As a result of its modular design, the unit is 25-50 percent smaller than other suction regulators making it the product of choice for crowded wall and rail areas. The case is made of strong ABS plastic. It features a smooth surface with rounded corners making cleaning easy. The case also houses the gauge for extra protection. The large control knob with its three (3) easy-to-read settings make vacuum adjustments simple, even in emergency situations.

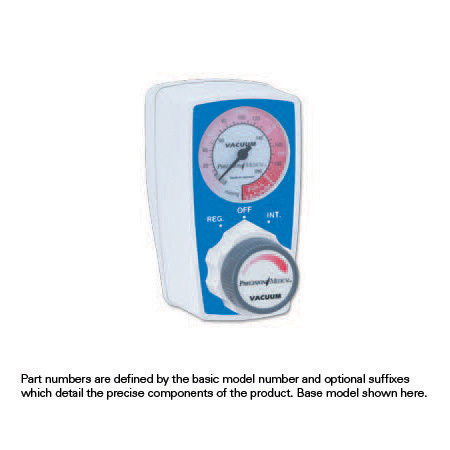

Specifications:

• Bottom Connection (inlet) - DISS Male
• Gauge Range:
  PM3000: 0-200mmHg - Ful Vacuum
  PM3000HV: 0-300mmHg - Full Vacuum
  PM3100: 0-200mmHg - Full Vacuum
  PM3100HV: 0-300mmHg - Full Vacuum
  PM3500: 0-150mmHG
• Gauge Accuracy:
  Analog: ± 5% of Max
  Digital Gauge: ± 1% of Full Scale
  Analog Gauge: ± 5% of MAX within ref. indicator
• Modes:
  PM3100: LINE, OFF, REG
  PM3000 and PM3500: OFF, REG
• Maximum Vacuum:

  PM3000 & PM3100: REG. Mode @ Full Vac - 396 mmHg (53 kPa)
  PM3500D: Restricted to 170 mmHg (23 kPa) ± 10 mmHg (1.3 kPa)
  PM3500E: Restricted to 160 mmHg (21 kPa) ± 10 mmHg (1.3 kPa)
• Weight: 1.1 lbs. (.48 kg)
• Dimensions: 3.7 in. (9.4 cm), 2.8 in. (7.1 cm), 5.2 in. (13.2 cm)
• Battery: 3 Volt Lithium, ½ AA (Digital Vacuum Gauge Models ONLY)

The unique modular design makes repair a breeze for any biomed or central supply department. The unit is made up of eight (8) easy-to-replace modular components. Unlike the normal plastic inlet and outlet connections on most units, the cast metal backplate connections are extremely durable, thereby saving unnecessary repair costs. As a result of its modular design, the unit is 25-50 percent smaller than other suction regulators making it the product of choice for crowded wall and rail areas. The case is made of strong ABS plastic. It features a smooth surface with rounded corners making cleaning easy. The case also houses the gauge for extra protection. The large control knob with its three (3) easy-to-read settings make vacuum adjustments simple, even in emergency situations.

Key Benefits:

• Bottom Connection (inlet) - Tubing Nipple
• Gauge Range: 0-300mmHg - Max Vacuum
• Gauge Accuracy:
  Analog: ± 5% of Max
  Digital Gauge: ± 1% of Full Scale
  Analog Gauge: ± 5% of MAX within ref. indicator
• Modes: REG - OFF - INT
• Maximum Vacuum:
  REG. Mode @ Full Vac - 396 mmHg
• Weight: 1.1 lbs. (.48 kg)
• Dimensions: 3.7 in. (9.4 cm), 2.8 in. (7.1 cm), 5.2 in. (13.2 cm)

Specifications:

• Bottom Connection (inlet) - 1/8 inch NPTF
• Gauge Range: 0-300mmHg - Full Vacuum
• Gauge Accuracy:
  Analog: ± 5% of Max
  Digital Gauge: ± 1% of Full Scale
  Analog Gauge: ± 5% of MAX within ref. indicator
• Maximum Vacuum:
  REG. Mode @ Full Vac - 396 mmHg
• Weight: 1.1 lbs. (.48 kg)
• Dimensions: 3.7 in. (9.4 cm), 2.8 in. (7.1 cm), 5.2 in. (13.2 cm)

The unique modular design makes repair a breeze for any biomed or central supply department. The unit is made up of six (6) easy-to-replace modular components. Unlike the normal plastic inlet and outlet connections on most units, the cast metal backplate connections are extremely durable, thereby saving unnecessary repair costs. As a result of its modular design, the unit is 25-50 percent smaller than other suction regulators making it the product of choice for crowded wall and rail areas. The case is made of strong ABS plastic. It features a smooth surface with rounded corners making cleaning easy. The case also houses the gauge for extra protection. The large control knob with its three (3) easy-to-read settings make vacuum adjustments simple, even in emergency situations.

Specifications:

• Bottom Connection (inlet) - Ohmeda Style Trap Bottle
• Gauge Range:
  PM3300: 0-200mmHg - Full Vacuum
  PM3300HV: 0-300mmHg - Max Vacuum
  PM3400: 0-150mmHg
• Gauge Accuracy:
  Analog: ± 5% of Max
  Digital Gauge: ± 1% of Full Scale
  Analog Gauge: ± 5% of MAX within ref. indicator
• Modes: REG., OFF, INT.
• Maximum Vacuum:

  PM3300: REG. Mode @ Full Vac - 396 mmHg (53 kPa)
  PM3400: Restricted to 170 mmHg (23 kPa) ± 10 mmHg (1.3 kPa)
• Weight: 1.1 lbs. (.48 kg)
• Dimensions: 3.7 in. (9.4 cm), 2.8 in. (7.1 cm), 5.2 in. (13.2 cm)

Specifications:

• Bottom Connection (inlet) - 1/8 inch NPTF
• Gauge Range: 0-300mmHg - Full Vacuum
• Gauge Accuracy:
  Analog: ± 5% of Max
  Digital Gauge: ± 1% of Full Scale
  Analog Gauge: ± 5% of MAX within ref. indicator
• Maximum Vacuum:
  REG. Mode @ Full Vac - 396 mmHg
• Weight: 1.1 lbs. (.48 kg)
• Dimensions: 3.7 in. (9.4 cm), 2.8 in. (7.1 cm), 5.2 in. (13.2 cm)

It's Innovative
Only unit with the dual capacity of subglottic and continuous suction. This allows clinicians to meet VAP prevention guidelines.

It's Unique
Flow indicator enables the clinician. To rapidly assess the patency of the subglottic suction lumen.

Its Powerful
Out performs traditional suction regulators at low suction pressures used for continuous subglottic suctioning.

Its Compact
Fits into tight headwall systems.

It's User Friendly
Easy to read dial and flow indicator.

Subglottic Suction Regulator features include:

• Scaled Suction Range: 0-85 mmHg (0-11.3 kPa)
• Scale Accuracy: +/- 3 mmHg (.4 kPa)
• Maximum Regulator Vacuum Setting: 85 mmHg (11.3 kPa)
• Flow: 13 LPM @ 20 mmHg up to 37 lpm at Max of 85 mmHg (54 lpm in "Push to Clear" mode)
• Weight: 0.38lbs (0.17kg)

The unique modular design makes repair a breeze for any biomed or central supply department. The unit is made up of six (6) easy-to-replace modular components. Unlike the normal plastic inlet and outlet connections on most units, the cast metal backplate connections are extremely durable, thereby saving unnecessary repair costs. As a result of its modular design, the unit is 25-50 percent smaller than other suction regulators making it the product of choice for crowded wall and rail areas. The case is made of strong ABS plastic. It features a smooth surface with rounded corners making cleaning easy. The case also houses the gauge for extra protection. The large control knob and easy-to-read settings make vacuum adjustments simple, even in emergency situations. The Pediatric vacuum regulator is restricted to 170 mmHg (±10 mmHg) to prevent high vacuum situations and the gauge face is imprinted with the Precision Medicals "Stork Symbol" to identify the unit for pediatric applications.

Key Benefits:

• Bottom Connection (inlet) - Tubing Nipple
• Gauge Range: 0-200 mmHg or 0-300mmHg - Full Vacuum
• Gauge Accuracy:
  Analog: ± 5% of Max
  Digital Gauge: ± 1% of Full Scale
  Analog Gauge: ± 5% of MAX within ref. indicator
• PreSet Range: ±10mmHg of setting
• Modes: LINE - OFF - REG
• Maximum Vacuum:
  PS3000 & PS3100: REG. Mode @ Full Vac - 396 mmHg
• Weight: 1.1 lbs. (.48 kg)
• Dimensions: 3.7 in. (9.4 cm), 2.8 in. (7.1 cm), 5.2 in. (13.2 cm)

The unique modular design makes repair a breeze for any biomed or central supply department. The unit is made up of six (6) easy-to-replace modular components. Unlike the normal plastic inlet and outlet connections on most units, the cast metal backplate connections are extremely durable, thereby saving unnecessary repair costs. As a result of its modular design, the unit is 25-50 percent smaller than other suction regulators making it the product of choice for crowded wall and rail areas. The case is made of strong ABS plastic. It features a smooth surface with rounded corners making cleaning easy. The case also houses the gauge for extra protection. The large control knob and easy-to-read settings make vacuum adjustments simple, even in emergency situations. The Pediatric vacuum regulator is restricted to 170 mmHg (±10 mmHg) to prevent high vacuum situations and the gauge face is imprinted with the Precision Medicals "Stork Symbol" to identify the unit for pediatric applications.

Key Benefits:

• Bottom Connection (inlet) - DISS Male
• Gauge Range: 0-200 mmHg or 0-300mmHg - Full Vacuum
• Gauge Accuracy:
  Analog: ± 5% of Max
  Digital Gauge: ± 1% of Full Scale
  Analog Gauge: ± 5% of MAX within ref. indicator
• PreSet Range: ±10mmHg of setting Modes: OFF - REG
• Maximum Vacuum: PS3000 & PS3100: REG. Mode @ Full Vac - 396 mmHg
• Weight: 1.1 lbs. (.48 kg)
• Dimensions: 3.7 in. (9.4 cm), 2.8 in. (7.1 cm), 5.2 in. (13.2 cm)

The unique modular design makes repair a breeze for any biomed or central supply department. The unit is made up of six (6) easy-to-replace modular components. Unlike the normal plastic inlet and outlet connections on most units, the cast metal backplate connections are extremely durable, thereby saving unnecessary repair costs. As a result of its modular design, the unit is 25-50 percent smaller than other suction regulators making it the product of choice for crowded wall and rail areas. The case is made of strong ABS plastic. It features a smooth surface with rounded corners making cleaning easy. The case also houses the gauge for extra protection. The large control knob and easy-to-read settings make vacuum adjustments simple, even in emergency situations. The Pediatric vacuum regulator is restricted to 170 mmHg (±10 mmHg) to prevent high vacuum situations and the gauge face is imprinted with the Precision Medicals "Stork Symbol" to identify the unit for pediatric applications.

Key Benefits:

• Bottom Connection (inlet) - Ohmeda Style Trap Bottle
• Gauge Range: 0-200 mmHg or 0-300mmHg - Full Vacuum
• Gauge Accuracy:
  Analog: ± 5% of Max
  Digital Gauge: ± 1% of Full Scale
  Analog Gauge: ± 5% of MAX within ref. indicator
• PreSet Range: ±10mmHg of setting
• Modes: OFF - REG
• Maximum Vacuum:
  PS3000 & PS3100: REG. Mode @ Full Vac - 396 mmHg
• Weight: 1.1 lbs. (.48 kg)
• Dimensions: 3.7 in. (9.4 cm), 2.8 in. (7.1 cm), 5.2 in. (13.2 cm)

The unique modular design makes repair a breeze for any biomed or central supply department. The unit is made up of eight (8) easy-to-replace modular components. Unlike the normal plastic inlet and outlet connections on most units, the cast metal backplate connections are extremely durable, thereby saving unnecessary repair costs. As a result of its modular design, the unit is 25-50 percent smaller than other suction regulators making it the product of choice for crowded wall and rail areas. The case is made of strong ABS plastic. It features a smooth surface with rounded corners making cleaning easy. The case also houses the gauge for extra protection. The large control knob with its three (3) easy-to-read settings make vacuum adjustments simple, even in emergency situations.

Key Benefits:

• Bottom Connection (inlet) - DISS Male
• Gauge Range:
  0-200 mmHg and “Full Vacuum”
  0-300mmHg and "Max Vacuum"
• Gauge Accuracy:
  Analog: ± 5% of Max
  Digital/Analog:
  Digital Display: ± 1% of Full Scale
  Analog Gauge: ± 5% of MAX within ref. indicator
• Preset Range: ±10mmHg of setting
• Maximum Vacuum:
  REG. Mode @ Full Vac - 396 mmHg
• Weight: 1.2 lbs. (.56 kg)
• Dimensions: 4.4 in. (11.2 cm), 2.8 in. (7.1 cm), 5.3 in. (13.4 cm)

The unique modular design makes repair a breeze for any biomed or central supply department. The unit is made up of eight (8) easy-to-replace modular components. Unlike the normal plastic inlet and outlet connections on most units, the cast metal backplate connections are extremely durable, thereby saving unnecessary repair costs. As a result of its modular design, the unit is 25-50 percent smaller than other suction regulators making it the product of choice for crowded wall and rail areas. The case is made of strong ABS plastic. It features a smooth surface with rounded corners making cleaning easy. The case also houses the gauge for extra protection. The large control knob with its three (3) easy-to-read settings make vacuum adjustments simple, even in emergency situations.

Key Benefits:

• Bottom Connection (inlet) - Ohmeda Trap Style
• Gauge Range:
  0-200 mmHg and “Full Vacuum”
  0-300mmHg and "Max Vacuum"
• Gauge Accuracy:
  Analog: ± 5% of Max
  Digital/Analog:
  Digital Display: ± 1% of Full Scale
  Analog Gauge: ± 5% of MAX within ref. indicator
• Preset Range: ±10mmHg of setting
• Modes: REG - OFF - INT
• Maximum Vacuum:
  REG. Mode @ Full Vac - 396 mmHg
• Weight: 1.2 lbs. (.56 kg)
• Dimensions: 4.4 in. (11.2 cm), 2.8 in. (7.1 cm), 5.3 in. (13.4 cm)

Specifications:

• Bottom Connection (inlet) - Ohmeda Style Trap Bottom
• Gauge Range: 0-300mmHg - Full Vacuum
• Gauge Accuracy:
  Analog: ± 5% of Max
  Digital Gauge: ± 1% of Full Scale
  Analog Gauge: ± 5% of MAX within ref. indicator
• Maximum Vacuum:
  REG. Mode @ Full Vac - 396 mmHg
• Weight: 1.1 lbs. (.48 kg)
• Dimensions: 3.7 in. (9.4 cm), 2.8 in. (7.1 cm), 5.2 in. (13.2 cm)

The unique modular design makes repair a breeze for any biomed or central supply department. The unit is made up of six (6) easy-to-replace modular components. Unlike the normal plastic inlet and outlet connections on most units, the cast metal backplate connections are extremely durable, thereby saving unnecessary repair costs. As a result of its modular design, the unit is 25-50% smaller than other suction regulators making it the product of choice for crowded wall and rail areas. With 0-760 mmHg the High Vac can give you more suction and flow with visible readings. The case is made of strong ABS plastic. It features a smooth surface with rounded corners making cleaning easy. The case also houses the gauge for extra protection.The large control knob and easy-to-read settings make vacuum adjustments simple, even in emergency situations.

Specifications:

• Gauge Range: 0-760mmHg - High Vacuum
• Gauge Accuracy:
  Analog: ± 5% of Max
  Digital Gauge: ± 1% of Full Scale
  Analog Gauge: ± 5% of MAX within ref. indicator
• Modes: LINE, OFF, REG
• Maximum Vacuum:
  REG. Mode @ Full Vac - 760 mmHg
• Vacuum Ports: 1/8 NPT Female
• Weight: 1.1 lbs
• Dimensions: 3.7 in L x 2.8 in W x 5.2 in H

The unique modular design makes repair a breeze for any biomed or central supply department. The unit is made up of six (6) easy-to-replace modular components. Unlike the normal plastic inlet and outlet connections on most units, the cast metal backplate connections are extremely durable, thereby saving unnecessary repair costs. As a result of its modular design, the unit is 25-50 percent smaller than other suction regulators making it the product of choice for crowded wall and rail areas. The case is made of strong ABS plastic. It features a smooth surface with rounded corners making cleaning easy. The case also houses the gauge for extra protection. The large control knob and easy-to-read settings make vacuum adjustments simple, even in emergency situations. The Pediatric vacuum regulator is restricted to 170 mmHg (±10 mmHg) to prevent high vacuum situations and the gauge face is imprinted with the Precision Medicals "Stork Symbol" to identify the unit for pediatric applications.

Key Benefits:

• Bottom Connection (inlet) - None
• Gauge Range:
  PS3300: 0-200 mmHg and "Full Vacuum"
  PS330HV: 0-300mmHg and "Max Vacuum"
• Gauge Accuracy:
  Analog: ± 5% of Max
  Digital Gauge: ± 1% of Full Scale
  Analog Gauge: ± 5% of MAX within ref. indicator
• PreSet Range: ±10mmHg of setting
• Modes: OFF - REG - INT
• Maximum Vacuum: REG. Mode @ Full Vac- 396 mmHg
• Weight: 1.2 lbs. (.56 kg)
• Dimensions: 4.4 in. (11.2 cm), 2.8 in. (7.1 cm), 5.3 in. (13.4 cm)

The unique modular design makes repair a breeze for any biomed or central supply department. The unit is made up of eight (8) easy-to-replace modular components. Unlike the normal plastic inlet and outlet connections on most units, the cast metal backplate connections are extremely durable, thereby saving unnecessary repair costs. As a result of its modular design, the unit is 25-50 percent smaller than other suction regulators making it the product of choice for crowded wall and rail areas. The case is made of strong ABS plastic. It features a smooth surface with rounded corners making cleaning easy. The case also houses the gauge for extra protection. The large control knob with its three (3) easy-to-read settings make vacuum adjustments simple, even in emergency situations.

Key Benefits:

• Bottom Connection (inlet) - 1/8 NPT Female
• Gauge Range: 0-200 mmHg
• Gauge Accuracy:
  Analog: ± 5% of Max
  Digital/Analog:
  Digital Display: ± 1% of Full Scale
  Analog Gauge: ± 5% of MAX within ref. indicator
• Preset Range: ±10mmHg of setting
• Modes: REG - OFF - INT
• Weight: 1.2 lbs. (.56 kg)
• Dimensions: 4.4 in. (11.2 cm), 2.8 in. (7.1 cm), 5.3 in. (13.4 cm)

The unique modular design makes repair a breeze for any biomed or central supply department. The unit is made up of eight (8) easy-to-replace modular components. Unlike the normal plastic inlet and outlet connections on most units, the cast metal backplate connections are extremely durable, thereby saving unnecessary repair costs. As a result of its modular design, the unit is 25-50 percent smaller than other suction regulators making it the product of choice for crowded wall and rail areas. The case is made of strong ABS plastic. It features a smooth surface with rounded corners making cleaning easy. The case also houses the gauge for extra protection. The large control knob with its three (3) easy-to-read settings make vacuum adjustments simple, even in emergency situations.

Key Benefits:

• Gauge Range: 0-150mmHg
• Gauge Accuracy:
  Analog: ± 5% of Max
  Digital/Analog:
  Digital Display: ± 1% of Full Scale
  Analog Gauge: ± 5% of MAX within ref. indicator
• Preset Range: ±10mmHg of setting
• Modes: REG - OFF - INT (3l/min)
• Weight: 1.2 lbs. (.56 kg)
• Dimensions: 4.4 in. (11.2 cm), 2.8 in. (7.1 cm), 5.3 in. (13.4 cm)

The unique modular design makes repair a breeze for any biomed or central supply department. The unit is made up of six (6) easy-to-replace modular components. Unlike the normal plastic inlet and outlet connections on most units, the cast metal backplate connections are extremely durable, thereby saving unnecessary repair costs. As a result of its modular design, the unit is 25-50 percent smaller than other suction regulators making it the product of choice for crowded wall and rail areas. The case is made of strong ABS plastic. It features a smooth surface with rounded corners making cleaning easy. The case also houses the gauge for extra protection. The large control knob and easy-to-read settings make vacuum adjustments simple, even in emergency situations. The Pediatric vacuum regulator is restricted to 170 mmHg (±10 mmHg) to prevent high vacuum situations and the gauge face is imprinted with the Precision Medicals "Stork Symbol" to identify the unit for pediatric applications.

Key Benefits:

• Bottom Connection (inlet) - None
• Gauge Range: 0-200 mmHg or 0-300mmHg - Full Vacuum
• Gauge Accuracy:
  Analog: ± 5% of Max
  Digital Gauge: ± 1% of Full Scale
  Analog Gauge: ± 5% of MAX within ref. indicator
• PreSet Range: ±10mmHg of setting Modes: OFF - REG
• Maximum Vacuum: PS3000 & PS3100: REG. Mode @ Full Vac - 396 mmHg
• Weight: 1.1 lbs. (.48 kg)
• Dimensions: 3.7 in. (9.4 cm), 2.8 in. (7.1 cm), 5.2 in. (13.2 cm)

The surgical suction regulator is designed for use in surgical suites. There are two operational modes: regulated vacuum and full line. Regulated suction allows the clinician to set the vacuum level between 0 and 300 mm Hg.  On full line mode, the vacuum pressure delivered is unregulated and equal to the vacuum line pressure.

Key Features

• Internal safety relief valve limits the maximum vacuum level on regulated mode to 320 mm Hg in the event of regulator failure or inaccuracy
• Superior regulation mechanism ensures stable vacuum settings even with fluctuations in source vacuum

• Easy-To-Read Pivoting Vacuum Gauge
• Swivel Adapter
• Easy-To-Grasp On/Off Valve
