Resuscitation Accessories

Key benefits:

• For use with VentiSure2™ resuscitator
• Adjusts 5-20cm H2O
• 30mm ID fitting

Key benefits:

• The FENEM^® CO₂ Indicator is integrated into the VentiSure2™ manual resuscitator or can be purchased separately.
• It provides a simple, convenient way to monitor a patient’s endotracheal tube placement and profusion levels.
• It attaches to the exhalation port of a resuscitator bag, so it does not add dead space or resistance to flow.
• Shelf Life 2 years

• Built in bacterial filter protects both patient and clinician
• CO2 Easy for patients weighing 15kg (33lbs.) or above
• Pedi CO2 Easy for patients weighing 1 - 15kg (2.2 - 33lbs.)
• 3 year shelf life
• Designed for fast, easy airway assessment
• Verifies proper endotracheal tube placement
• Helps prevent unwarranted intubations
• Confirms cardiac output during CPR
• Expansive 2 inch Diameter Visual Indicator makes rapid breath-to-breath response easy to see
• Anti-fogging agent reduces susceptibility to moisture and humidity, while ensuring continuous lens clarity (CO2 Easy only)
• Complies with Standard of Care Guideli

• Built in bacterial filter protects both patient and clinician
• CO2 Easy for patients weighing 15kg (33lbs.) or above
• Pedi CO2 Easy for patients weighing 1 - 15kg (2.2 - 33lbs.)
• 3 year shelf life
• Designed for fast, easy airway assessment
• Verifies proper endotracheal tube placement
• Helps prevent unwarranted intubations
• Confirms cardiac output during CPR
• Visual Indicator makes rapid breath-to-breath response easy to see
• Anti-fogging agent reduces susceptibility to moisture and humidity, while ensuring continuous lens clarity (CO2 Easy only)
• Complies with Standard of Care Guidelines from the American

• Reliable carbon dioxide detectors help verify endotracheal tube placement
• Responds quickly to exhaled CO2 with a simple color change from purple to yellow
• Breath-to-breath response
• Constant visual feedback for up to 2 hours

• paraPAC™ ventilator
• ventiPAC™

87-VP705EA description

• Designed for fast, easy airway assessment
• Verifies proper endotracheal tube placement
• Helps prevent incorrect intubations
• Confirms cardiac output during CPR
• Expansive 2" diameter Visual Indicator makes rapid breath-to-breath response easy to see
• Anti-fogging agent reduces susceptibility to moisture and humidity, while ensuring continuous lens clarity
• Complies with Standard of Care Guidelines from the American Heart Association, American
• College of Emergency Physicians, American Association for Respiratory Care and the American Society of Anesthesiologists

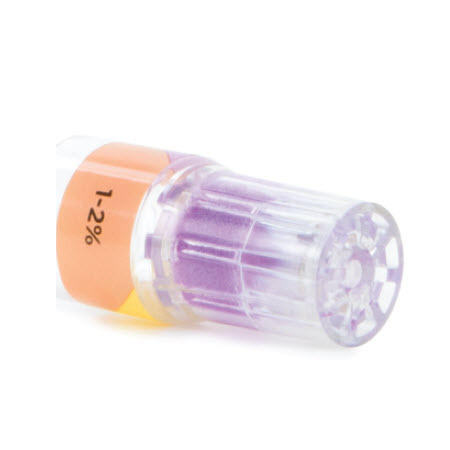

The MaxCap is a disposable, single use CO2 indication device designed for placement between a breathing device and a patients endotracheal tube or mask for visualization of exhaled CO2. The MaxCap will assist the caregiver in verifying proper ET tube placement. A lack of color change may indicate improper intubation. SunMed’s MaxCap CO2 Indicator is aimed at reducing air trapping and overdistention during resuscitation by identifying the end of exhalation.

Neonatal

• Patient weight: 0.25 to 6 kg (0.55 to 13 lbs)
• Dead space: 1mL
• Resistane (cmH2O): 2.1 @ 5 LPM
• Usage time: 6 hours

Pediatric

• Patient weight: 1 to 15 kg (2.2 to 33 lbs)
• Dead space: 2.5mL
• Resistane (cmH2O): 0.5 @ 10 LPM
• Usage time: 6 hours

Regular

• Patient weight: Greater than 15 kg (33 lbs)
• Dead space: 7mL
• Resistane (cmH2O): 2.4 @ 60 LPM
• Usage time: 6 hours

• Recommended patient size – 1 to 15 kg
• Internal volume (dead space) – 3 cc
• Resistance to flow – 2.5 cm H2O +/-0.5 cm @ 10 LPM flow
• Usage time: up to 2 hours
• Connector ports:
• • Patient end: 18 mm OD/15 mm ID
  • Circuit end: 15 mm OD/5 mm ID
