Spirometers & Accessories

Curaplex® pulmonary function testing (PFT) filters provide a barrier against potential contaminants, such as bacteria and viruses, without interfering with the performance of PFT equipment. Electrostatically-charged hydrophobic fibers combined with the flat design of the filter help capture microorganisms and other rogue particles. The filters are designed with the patient’s comfort in mind and include several mouthpiece style choices.* Filters potential contaminants and microorganisms, such as bacteria and viruses* Provides low resistance to help ensure accurate spirometry testing, exceeding ATS Guidelines* Provides low dead space as required for lung volume and DLCO testing* Round, elliptical and pediatric/geriatric configurations available to fit most patients comfortablyOptional accessories include disposable nose clip and/or rubber mouthpiece to fit patient’s specific needs.

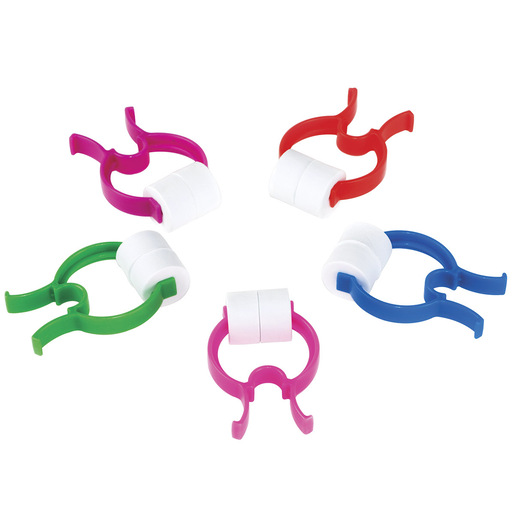

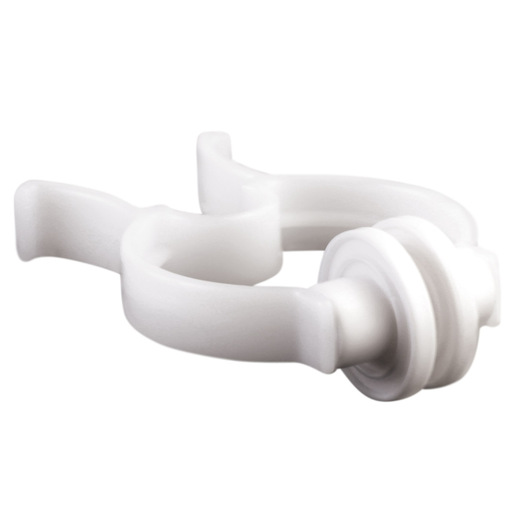

Curaplex nose clips are designed to fit securely and comfortably on the patient. The clips feature a spring design which helps ensure a snug fit. The smooth edges help prevent scratching of the nose and provide enhanced comfort to the patient. These clips are available in multiple colors, with a foam or plastic tip. Features: * Foam or Plastic tip * Available in white, blue, or multiple colors (Pink, Purple, Red, Dark Blue, Green) * Spring design to ensure a snug fit * Smooth edges to prevent scratches

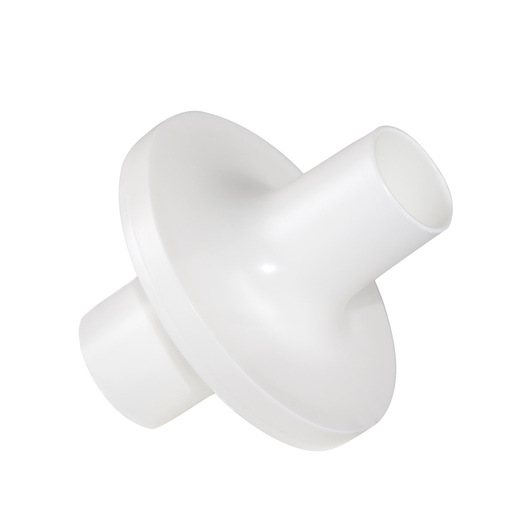

Pulmonary function filter specifications include: * Tidal volume range greater than 300 ml * Dead space 75 mL * Resistance to flow 30 L/min: 0.2 cm H2O, 60 L/min: 0.5 cm H2O, 72 L/min: 0.7 cm H2O/L * Fittings: 28 mm M x 30 mm F * Bacterial/Viral Efficiency: >99.9999%

Turbine flow meter compatible with:* SpiroLab* SpiroLab II* SpiroLab III* SpiroBank* SpiroBank USB* SpiroBank G* SpiroBank II* MiniSpir* MiniFlometer

EasyOne FlowTube mouthpieces avoid cross-contamination between patients while reducing device cleaning to an absolute minimum. The mouthpieces have been engineered to fit perfectly into NDD’s EasyOne® Air Spirometry System device to guarantee reliable and high-quality measurement results. Features: * Disposable * Single Patient Use * For use with EasyOne® Air Spirometry System

Adult mouthpiece features include:* Paper* Disposable* 30 mm OD

Spirette Breathing Tube designed for use with EasyOne™ Spirometer.

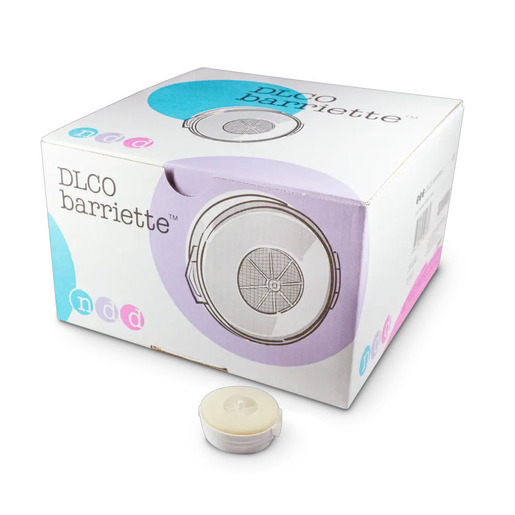

The Barriette® is a virtual filter validated for optimum hygienic separation of spirette/patient from the analyzer. This new consumable is designed by ndd.

Pulmonary Function Test Filter features include:* Filtration Efficiency: >99.9%* Resistance to Flow: <2.5 cm H2O/L/sec (over the flow range 0–14 L/sec)* Media: Electrostatically-charged polypropylene fibers* Weight: 33 grams* Dead Space: 55 ml* Connections: 30 mm OD (tapered) on patient end, 34 mm OD on machine end

Coach 2® Incentive Spirometer features include:* One-way Valve* Flexible Tubing* Brightly Colored Piston* Universal graphics* Instructions For Use in Base* Oxygen port* Bedrail holder

The BlockAide™ ¬lter media consists of a special blend of polymers with a highly stable electrostatic charge on every individual fi¬ber, which allows it to consistently achieve high efficiencies by using both the electrostatic charge and mechanical impaction to remove airborne bacterial and viral particles. While being highly efficient in bacterial and viral fi¬ltration efficiency, the fi¬lter media still maintains a low airflow resistance to ensure diagnostic accuracy.Specifications:* Viral Filtration Efficiency: 99.9%* Bacterial Filtration Efficiency: 99.9%* Flow Resistance: .46 cm/H2O/L/S@14L/S* Dead Space Round MP: 54 ml* Dead Space Elliptical MP: 51 mlApproved for use with:SENSORMEDICS, 2200, 2400, 2450, 2800, VMAX, KEYSTONE I, KEYSTONE II, PAIL, CYBER-MEDICS MOOSE, GOULD 5004, VIAYSIS NEW

Key benefits: * Straight * 22Fr ID

The BlockAide™ filter media consists of a special blend of polymers with a highly stable electrostatic charge on every individual fiber, which allows it to consistently achieve high efficiencies by using both the electrostatic charge and mechanical impaction to remove airborne bacterial and viral particles. While being highly efficient in bacterial and viral fi¬ltration efficiency, the fi¬lter media still maintains a low airflow resistance to ensure diagnostic accuracy. Specifications: * Viral Filtration Efficiency: 99.9% * Bacterial Filtration Efficiency: 99.9% * Flow Resistance: .46 cm/H2O/L/S@14L/S * Dead Space Round MP: 54 ml * Dead Space Elliptical MP: 51 ml 963-6906-6R approved for use with MEDGRAPHICS 963-6906-6E approved for use with ONE FLOW, JAEGER

Incentive spirometers are used to help keep patients’ lungs healthy when they are weakened and recovering. The breathing exercises are designed to help patients take long deep breaths, similar to a yawn which improves the ability to clear mucus and may also increase the amount of oxygen getting into the lungs. The CliniFLO® Flow Breathing Exerciser is ideal for therapy in geriatric, pediatric or weakened patients and features flow settings from 100ml/sec to 600ml/sec, virtually any patient can sustain the minimum inspiratory effort required for effective therapy. Slow inspirations enhance collateral ventilation and minimize patient discomfort when performing post-surgical breathing exercises. The O2 port makes it easy to provide oxygen during therapy. CliniFLO unit comes with preassembled popple tubing, mouthpiece and instructions. Features: * Six flow settings from 100ml/sec to 600ml/sec * Mouthpiece holder * Large yellow inspiratory flow indicator * Universal graphics * Oxygen port * Compact size w/bedrail holder * Built-in handle * Dial location on back of unit

Collection Bag features include:* For Non-Electric Spirometer* Calibrated* Disposable* 10 Liter

Spirometer Kit features include:* Mouthpiece with double one-way valves* Manometer connecting pressure cap with 14-in tubing and relief port* Universal adapter* Disposable

Mouthpiece features include:* For Non-Electric Spirometer* Disposable* Double One-Way Valves

Spirobank II Basic for basic spirometry tests. Features: * Works both in stand-alone mode and connected to PC via USB. * Backlit, high-resolution display with on-screen results and curves preview for immediate data assessment. * Traffic light health indicator for immediate test interpretation. * It uses disposable turbine flowmeter; already calibrated for immediate spirometry testing. * Memory up to 10.000 spirometry tests. * Rechargeable, long-life battery. * Real-time test on PC via USB. * Spirometry parameters: FVC, FEV1, FEV1%, PEF, FEF25–75, FET, Extrap. Volume, Lung Age, VC, IVC, IC, ERV. PRE and POST Bronchodilator comparison. * WinspiroPRO PC software (windows) included. * Automatic spirometry interpretation with alert messages. * Multi-language support.

Mini Flowmeter with cable, without Turbine. Use with SpiroLab (New).

SpiroSafe Filter features include:* Viral/Bacterial* Replacement part

The In-Check DIAL is a hand held low range inspiratory flow measurement device with a dial top. People living with Asthma, COPD or other lung diseases may be using Dry Powder Inhalers, Pressurized Metered Dose Inhalers or Nebulizers to breathe in medication. The DIAL can be adjusted to accurately simulate the resistance of popular inhaler devices which include MDI® and DPI® such as Turbuhaler®, Flexhaler®, Twisthaler®, Aerolizer®, Handihaler®, Diskus®, Ellipta® and Pressair® among others. The In-Check DIAL enables clinicians to train patients to the proper inspiratory technique considering force and flow rate to achieve optimal deposition of the medication being inhaled into the lungs. The DIAL G16 now categorizes inhalers by resistance and the newly designed scale gives proper feedback on all efforts. The one-way valved inspiratory mouthpiece allows for multiple patient use and is adaptable for adult or pediatric use protecting both the instrument and the patient from cross-contamination. All Kits include: * In-Check DIAL * Ped/Small Adapter Sample * Inspiratory Mouthpieces * Informational Thumb Drive * Guide to Impplementation Kit Options: * Item # 033-3579912: With One-Way Valved Disposable Inspiratory Mouthpiece * Reduce the risk of cross-infection with the disposable mouthpiece * Item # 033-3579911: Pediatric Kit With B/V Filtered Mouthpiece * Two way filter features protection against cross-infection with 99.9% Bacterial/Viral effectiveness * Item # 033-3579913: With One-Way Valved Disposable Inspiratory Mouthpiece and B/V Filter Mouthpiece * Combination cross-contamination protection for added safety

AllFLOW™ filters meet or exceed the highest standards in PFT filtering with minimal resistance and low dead space. Our unique Port Color Variety (PCV) reduces fumbling and contamination risk with filter mounting, providing easy administration with equipment. The wide selection of ports enable the professional to accurately obtain quality spirometry and lung function tests. The AllFLOW™ filter uses a medium with high quality electrostatic properties that trap bacteria and viruses, preventing contamination to both the patient and equipment. * Low resistance for accurate spirometry and lung function testing * Minimal dead space as needed for lung volume and DLCO testing * Excellent filtration of bacteria and viruses * Eight standard port sizes tailored to fit a wide selection of equipment * Filters exceed ATS guidelines for all criteria Specifications: * Bacterial Filtration Efficiency: 99.99% * Viral Filtration Efficiency: 99.99% * Dead Space: Approx. 35ml (cc) * Resistance: 0.23 cm H2O/L/sec approx.

Mouthpiece features include:* Accessory Part* White* Plastic* 22 mm

Spirobank II™ Smart spirometer features include:* Large graphic display* Downloadable data* Quality print-outs* Pediatric incentive animations* Pocket-sized
