Blenders & Accessories

Muffler for the MaxVenturi.

The MaxVenturi® has been specially designed to interface with high flow humidification systems. Using the well established venturi principle, this unit provides users with the ability to mix ambient air and oxygen without the need for piped medical grade air. This is the perfect solution for adult high flow therapy in almost any environment.

Features and Benefits:

• Provides users with the ability to mix ambient air and oxygen without the need for piped medical air
• 10-55 LPM
• All-in-one oxygen/air mixer, MaxO2+ analyzer and flow meter
• Long battery life on analyzer (approximately 5,000 hours)
• Independent adjustable O2% and flow
• Built-in pole clamp
• Ease in titration
• Two year O2 sensor warranty
• Easy to clean (Wipe down the unit between uses)

• Easy to move with equipment

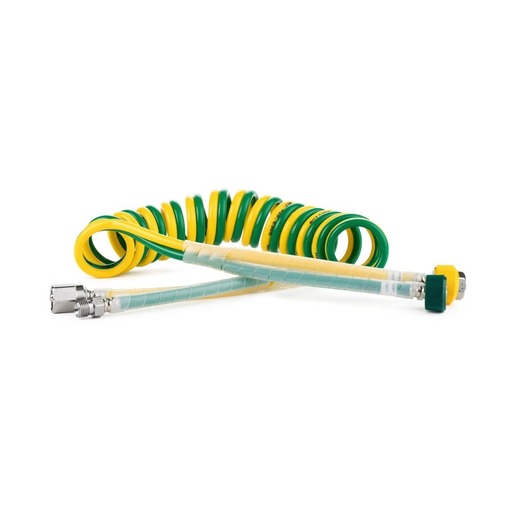

• High-grade polyurethane material to help keep the work space clean
• DISS Fittings (handtight and hextight)
• Self coiling prevents touching the ground
• Meets NFPA 99 Standard for manufactured assemblies
• 10 feet

It's Unique.
It is the only unit available that allows the clinician to turn the bleed control to ON or OFF providing quieter operation. This feature is especially useful in the NICU and PICU.

It's Durable.
The tough ABS housing makes the unit durable and the selection control knob is recessed to prevent accidental damage.

It's Versatile.
The unit is available in two models, high and low flow. The blender is easily mounted with a universal mounting bracket. It can be detached from the mounting bracket without removing hoses.

It's Modular.
The unique modular design can cut routine maintenance time in half as well as reduce maintenance costs. The unit has easy-to-replace modular components and is easily maintained by all biomed departments.

Its User-Friendly.
A large selection control knob makes oxygen percentage adjustments easy. The infection-control-friendly housing is smooth and easy to clean.

It's a High-Performance Unit.
The highly accurate unit maintains FI02 even at low flows. It is economical and provides cost-savings with less waste.

 Specifications for the PM5300 Model:

• Dimensions: Depth: 4.9 in (12.5 cm), Width: 2.25 in (5.7 cm), Height: 4.10 in (10.4 cm)
• Weight: 2.9lbs
• Primary Outlet Flow Range: 3-30 LPM
• Auxiliary Outlet Flow Range: 0-30 LPM
• Bleed Flow: 3 LPM or less at 50 psi (3.4 bar)
• Maximum Combined Flow: ≥ 30 L/min
• Bypass Flow: ≥ 45 L/min
• Bypass Alarm Activation: 18-22 psi (1.2-1.5 bar)
• Oxygen Concentration Range: 21-100%
• Mixed Gas Stability: ± 1% Oxygen
• Connection Types: DISS Type - Air & Oxygen Inlets & Outlets and / or NIST Type - Air & Oxygen Inlets
• Operating Temperature Range: 59°F to 104°F (15°C to 40°C)
• FI0² Accuracy: ± 3% of full scale
• Pressure Drop: ≤ 2 psi (0.14 bar) at inlet pressure from 30 - 90 psi (2.1 - 6.2 bar) and at 10 L/min flow rate at 60% FI0²

It's Unique.
It is the only unit available that allows the clinician to turn the bleed control to ON or OFF providing quieter operation. This feature is especially useful in the NICU and PICU.

It's Durable.
The tough ABS housing makes the unit durable and the selection control knob is recessed to prevent accidental damage.

It's Versatile.
The unit is available in two models, high and low flow. The blender is easily mounted with a universal mounting bracket. It can be detached from the mounting bracket without removing hoses.

It's Modular.
The unique modular design can cut routine maintenance time in half as well as reduce maintenance costs. The unit has easy-to-replace modular components and is easily maintained by all biomed departments.

Its User-Friendly.
A large selection control knob makes oxygen percentage adjustments easy. The infection-control-friendly housing is smooth and easy to clean.

It's a High-Performance Unit.
The highly accurate unit maintains FI02 even at low flows. It is economical and provides cost-savings with less waste.

 Specifications for the PM5200 Model:

• Dimensions: Depth: 4.9 in (12.5 cm), Width: 2.3 in (5.7 cm), Height: 4.1 in (10.4 cm)
• Weight: 2.29lbs
• Primary Outlet Flow Range: 15-120 LPM
• Auxiliary Outlet Flow Range: 2-100 LPM
• Bleed Flow: 13 LPM or less at 50 psi (3.4 bar)
• Maximum Combined Flow: ≥ 120 L/min
• Bypass Flow: ≥ 85 L/min
• Bypass Alarm Activation: 50 psi (3.45 bar), 13-25 psi, 0.9-1.7 bar
• Oxygen Concentration Range: 21-100%
• Mixed Gas Stability: ± 1% Oxygen
• Connection Types: DISS Type - Air & Oxygen Inlets & Outlets and / or NIST Type - Air & Oxygen Inlets
• Operating Temperature Range: 59°F to 104°F (15°C to 40°C)
• FI0² Accuracy: ± 3% of full scale
• Pressure Drop: ≤ 3 psi (0.21 bar) at inlet pressure from 30 - 90 psi (2.1 - 6.2 bar) and at 30 L/min flow rate at 60% FI0²

High Flow Three-In-One Flowmeter Adapter. Versatile triple tubing connection adapter.

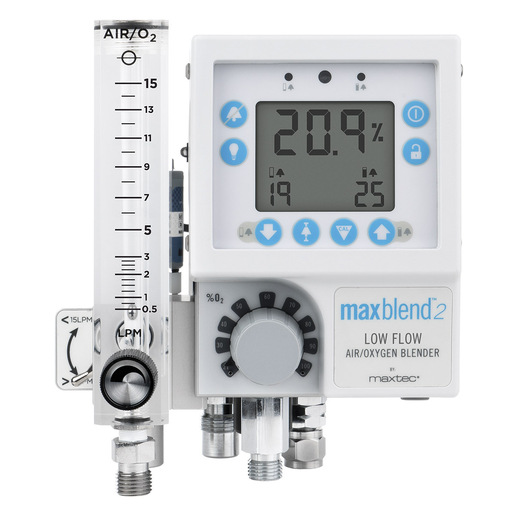

This easy-to-use, low-maintenance blender includes a backlit LCD and acrylic flow meter, smart alarms, DC power port, extended battery life, and more—all backed by the Maxtec two-year warranty.

Maxtec combines their advanced air/O2 blending technology with their globally acclaimed oxygen monitoring technology. Maxtec offers the Low-Flow and High-Flow blender with a built-in monitor that allows you to measure oxygen percentage in a clean and dry environment, away from the patient.

• Three-in-one blender
• Helps eliminate cross-contamination
• Provides measurements free from temperature, pressure, and humidity
• Large, backlit LCD with low-light sensor
• 15% to 99% low alarm capabilities
• Multiple flow meter configurations and bleed control
• DC power port for optional, remote power supply
• Smart alarms – sets alarms 3% +/- current reading

• Operating Conditions:
• • Temperature: 50^°F to 113^°F
  • Altitude: Sea Level to 8,000 ft/2438 m
• Power Requirements:4 AA Alkaline Batteries (4 x 1.5=6 Volts)
• Battery Life: Approximately 2,000 hours continuous use, non-alarm condition
• Diverter Fitting: 15 mm "T" adapter
• Measurement Range: 0.0 - 100% Oxygen
• Accuracy and Linearity: +/- 1% of full scale at constant temperature, relative humidity and pressure when calibrated at full scale
• Total Accuracy: +/- 3% actual oxygen level over full operating temperature range
• Response Time: 90% of final value in less than 12 seconds at 77^°F
• Low Battery Indication: "LO BATTERY" message displayed and audible alarm
• Sensor Type: Galvanic Oxygen Sensor (fuel cell)

Reusable Oxygen Sensor Tee Piece and DISS Female by DISS Male Oxygen. Sensor Tee easily connects any oxygen sensor to any flowmeter.

The versatile 3800^™ MicroBlender features delivery of accurate FiO₂ mixtures from two outlet ports and has an overall flow range of 2-120 LPM, making it ideal for use with ventilators while providing flows to a flowmeter or Blender Buddy. It can also be used as a stand-alone device for mask CPAP, nasal cannula and resuscitation bags.

• Accurately delivers FiO2 mixtures
• High Flow range of 2-120 lpm

• Diaphragm
• Check Valve Assembly for Diaphragm
• Alarm Assembly
• Valve Assembly
• Auxiliary Outlet Assembly
• Oxygen and Air Inlet Assembly
• Retaining Ring
• O-Rings
• Springs
• Resistance Ring

Durable, lightweight bracket for greater usability. Oxygen Monitor Blender mount.

Sechrist air-oxygen gas mixers provide for precise mixing of air and oxygen for many clinical applications.

• The precise design of Sechrist mixers provides assurance of oxygen concentration accuracy within +/- 3 percentage point even in circumstances involving wide variances in supply gas pressures.
• Sechrist mixers incorporate integral filtration of supply gases. A 0.1-micron water trap/ filter is provided for the air inlet connection and both gas supply connections are protected by 7 micron sintered stainless steel (non-corroding) filters.
• In the event of a supply gas failure, an audible alarm is triggered as well as an assurance that gas from the remaining supply source will continue to be delivered.
• Wall mount

HeliO2 Blender is the only free-standing pneumatic blending device on the market today. Ability to turn bleed control collar ON or OFF provides +/- 3% FIO2 accuracy as well as quieter operation.

HeliO2 Low Flow Blender features include:

• FIO2 Range: 20-100% or 30-100% (see specific item detail)
• Dimensions: 4.92in D x 2.25in W x 4.10in H
• Weight: 2.9lbs
• Operating Temperature: 59^°F to 104^°F
• FIO2 Accuracy: +/-3% of full scale
• Bypass Alarm Activation: 18-22 PSI (1.2-1.5 bar)
• Primary Outlet Flow Range: 3-30 LPM
• Auxiliary Outlet Flow Range: 0-30 LPM
• Inlet Pressure Range: 30 - 75 PSI (2.1 - 5.2 bar); Heliox and Oxygen within 10 PSI (0.67 bar) of each other
• Inlet Fitting: Female DISS or NIST
• Bleed Flow at 50 psi (3.4 bar): 3 LPM or less
• Maximum Combined Flow: ≥30 lpm
• Primary Outlet Ports: 1
• Auxiliary Outlet Ports: 1

HeliO2 High Flow Blender features include:

• FIO2 Range: 20-100% or 30-100% (see specific item detail)
• Dimensions: 4.92in D x 2.25in W x 4.10in H
• Weight: 2.9lbs
• Operating Temperature: 59^°F to 104^°F
• FIO2 Accuracy: +/-3% of full scale
• Bypass Alarm Activation: 13-25 PSI (0.9-1.7 bar)
• Primary Outlet Flow Range: 15-120 LPM
• Auxiliary Outlet Flow Range: 2-100 LPM
• Inlet Pressure Range: 30 - 75 PSI (2.1 - 5.2 bar); Heliox and Oxygen within 10 PSI (0.67 bar) of each other
• Inlet Fitting: Female DISS or NIST
• Bleed Flow at 50 psi (3.4 bar): 13 LPM or less
• Maximum Combined Flow: ≥120 lpm
• Primary Outlet Ports: 1
• Auxiliary Outlet Ports: 1

The NEO₂ Blend series represents the ideal blender model for the NICU application. It comes with a 0-15 lpm flow meter close mounted to the left hand side (this makes an perfect spot to attach a resuscitation bag). The right side comes installed with either a 0-1, 0-3.5, or 1-15 lpm flowmeter (depending on the model you choose), which allows for use with a nasal cannula, CPAP, etc. The right side flow meter is installed on an integrated bleed control switch: when the right side is not needed, the bleed flow (3 lpm) can be disabled by pushing and rotating the flow meter forward when needed, simply return it to the upright position and use as desired.

Specifications:

• Oxygen %: 21 - 100%
• Number of Ports: 2 or 3
• Left Flowmeter Range: 3-15 lpm (1-15 if bleed is on)
• Right Flowmeter Range: 0-1.0, 0-3.5, 1-15 (with 3 lpm bleed on-flowmeter in upright position)
• Accuracy: +/- 3% full scale
• Bleed Flow: 3 lpm (when active)
• Size: 8.13 x 6.55 x 4.60 in. (20.65 x 16.64 x 11.68 cm.)
• Weight: 4.05 lbs. (1.84 kg.)

The MaxFLO₂ is an affordable method for mixing and monitoring air and oxygen. The MaxFLO₂ is available in two models: High Flow and Low Flow. Each unit comes equipped with dual flow meters and a mixed gas analysis port for intermittent or continuous monitoring of FiO₂. Gas ratios are visibly identified on the face of the unit to allow for fast, accurate flow settings.

• Flow & FiO₂ control all in one
• Mixed gas port for intermittent or continuous monitoring of O₂ concentration
• Low Flow Model: (0-10 LPM of air, oxygen or a combo of both)
• High Flow Model: (0-50 LPM of air, oxygen or a combo of both)
• Pole mount included for easy transport or storage
• Quiet operation for minimal patient stimulation
• Ownership is considerably lower than cost of blenders & blender maintenance
• 24 month warranty

The MaxBlend Lite is designed to provide all of the features of our MaxBlend 2 to customers already using a stand-alone blender. When paired with an existing blender, the MaxBlend Lite provides it’s users with the added features of a built-in O2 monitor with high and low alarms, and a flow meter. This product securely attaches to your blender using a specific independent adapter block.


• Combine to create a three-in-one blender
• Large, backlit LCD
• 15% to 99% low alarm capabilities
• Multiple flow meter configurations
• DC power port for optional, remote power supply
• Smart alarms – set alarms 3% +/- current reading
• Bleed control
• Available in Low & High Flow

The BlenderBuddy 2 equips your blender with the Maxtec DFB (designed for blenders) dual-scale flow meter and also has a built-in oxygen port, which allows gas to be analyzed safely and away from the patient to avoid cross-contamination. It securely attaches to your blender using the DISS outlet connection. The BlenderBuddy 2 also has a micro bleed, which reduces the amount of wasted gas by more than 15 times previous versions.

• BlenderBuddy 2, Low Flow, 0-3 LPM
• BlenderBuddy 2, Low Flow, 0-15 LPM
• BlenderBuddy 2, Low Flow, 0-30 LPM
• BlenderBuddy 2, High Flow, 0-70 LPM
