Ventilation Tubing & Accessories

Adult Water Trap is designed to ensure circuit patency at all times.Features:* Self-sealing lid* Threaded collection jar locks with quarter turn* Accepts standard 22mm ID tubing* 70cc capacity

Oxygen inlet adapter for Trilogy ventilators.

The Accutach sensor is a latex free, hypo-allergenic, flow sensing device. When placed in the line of the ventilator circuit the sensor accurately measures flow, volume, and pressures delivered to the patient.This disposable device provides differential pressure signals through the sensor ranges, precisely measuring ventilator settings and assuring the integrity of the patient circuit. The Accutach operates at the distal end of the ventilator circuit, locate between the patient Y and the endotracheal tube. The small dead space of 11 cc and the Accutach’s light weight provide ideal patient monitoring. The Accutach comes as a complete package with a Flow Sensor, a pair of 72-inch color-coded ventilator panel lines, a 15 mm ID – 22 mm OD adapter, and a 22 mm tubing clip.Each device is packaged clean and must be calibrated prior to use. The Accutach was designed to work with the H7200 VR-1 monitor and the Galileo®, Amadeus®, Veolar®, Raphael®, G5® and C-2® ventilators. The Accutach can be used for pediatric and adult patients.

Exhalation Port features include:* 22 mm OD x 15 mm ID* Disposable

Flexicare heated wire breathing systems.

Water trap assembly features include:* Miniature Size* 5 Micron Filter* Manual Drain Valve* High Flow Capacity

SMOOTH-FLO® CORR-A-TUBE® disposable tubing has a smooth internal surface to help prevent water from collecting in ridges. Its 22mm inside diameter end fitting adapts to most respiratory therapy applications.

Disposable Patient Valve to be used with* paraPAC Ventilator* ventiPAC Ventilator

Dual heated wire humidifier adapter lead for the FL-9000U Respiratory Humidifier.

Elbow Adaptor, 22mm ID x 22mm OD

Corrugated Tubing, Segmented, 100ft, 19mm x 19mm, Pink

Spiriolog® is compatible with Dräger devices: Primus, Fabius GS, Julian, Cato, Cicero, Sulla, Evita family, Savina.

Elbow, Entrainment, Replacement, Performax, w/Tube and Clip, Pediatric

A range of double swivel elbows providing added mobility at the patient connection, with a variety of ports for all applications. All Intersurgical port caps are retainable for safety; fixed to the port connectors to ensure that they cannot be misplaced in use. Flip top cap with 7.6mm port - for connection of all standard 7.6mm probes or suctioning. Double Flip top cap with seal - opening the first tab on the cap allows for the introduction of a fibre optic bronchoscope whilst maintaining airway pressure. Opening the second tab allows for suctioning if required.

Disposable Exhalation Port (DEP) features include:* Ventilation circuit accessory* Does not include filter

Corrugated Tubing is blue in color and segmented.

RJ9 to 1/4" nurse call cable, closed, for Trilogy Ventilators.

Inline aerosol tee adapter for use with the Combivent® Respimat® inhaler. * Port Sizes: Inlet: 22mm O.D. Outlet: 22mm I.D. * Size: Length: 3 in Height: 2.4 in Body Width: 1 in Wye Angle: 45° Cap Width: 1.3 in (at widest point) * Materials: Body: Polystyrene-Butadiene Cap: Theromplastic Rubber * Color: Body: Clear Cap: Clear * Use: Single Patient Reuse (Can be used to deliver medication multiple times to a single patient while installed in a breathing circuit.)

VentiMyst® Advanced Active Humidification delivers absolute humidity and manages excess rain-out. Adult breathing circuits (1.6m) with single or dual heated wires. Effective Moisture Management The VentiMyst® technology reduces the build up of rain-out. Clinical Confidence Reduced need to open or break the circuit with associated loss of PEEP and de-recruitment of the lungs. Sterile Packed All VentiMyst Heated Wire Breathing Systems are supplied sterile for superior patient safety. Efficient Temperature Transfer Helps prevent gas temperature loss and surface cold spots, minimizing rain-out. Low Compliance Tubing Accurate delivery of gas volumes and ventilation pressures to the patient. Reduced Risk Reduced risk of accidental drainage of rain-out into the patient’s airway.

PEV features include:* Patient Interface Accessory* Reusable

Corrugated, aerosol ventilation tubing.

VENTI-COMP® is a disposable, accurate system for computing tidal volume and a minute volume.Features:* Versatile adaptor allows unit to be connected to most expiratory ports* Accurately and reliably measures and / or evaluates the effectiveness of an I.P.P.B. treatment* Designed to be simple and easy to use-requires no special technical knowledge or training* Precise and accurate readings from the easy - to - read chart printed directly on the VENTI-COMP bag* Single-patient use of VENTI-COMP eliminates possibility of cross - contamination

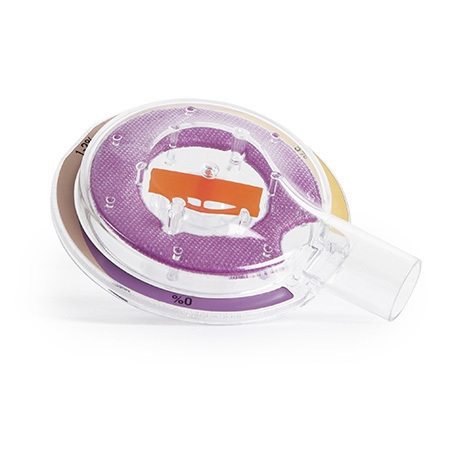

The FloCap® is a single-use CO2 and flow indicator designed to visualize a patient® exhaled CO2 and expiratory flow. The CO2 colorimetric indicator helps caregivers verify proper endotracheal tube placement. The patent-pending spinner detects end of exhalation, which can help prevent breath stacking and its associated health implications during resuscitation. * Visual indication of air flow * Multi-colored CO2 indicator * Single-use

The Superset range of catheter mounts have a concertina design to allow for positioning control. This allows the catheter mount to be set in any required position. The design allows the adjustment of deadspace from 20ml to 40ml (code 3504: 15-36ml) and the adjustment of length from 70mm to 150mm, excluding connectors (code 3504) for total control. The range is available with fixed and swivel elbows and a variety of ports for all applications. All Intersurgical port caps are retainable for safety; fixed to the port connectors to ensure that they cannot be misplaced in use. Flip top cap with 7.6mm port - for connection of all standard 7.6mm probes or suctioning. Luer ports - for secure attachment of gas sampling lines with luer lock fittings. Double flip top cap with seal - opening the first tab on the cap allows for the introduction of a fibre optic bronchoscope whilst maintaining airway pressure. Opening the second tab allows for suctioning if required.
