Intersurgical

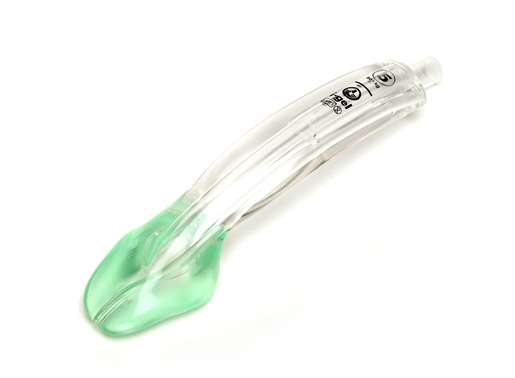

Made from a medical grade thermoplastic elastomer, I-GEL has been designed to create a non-inflatable, anatomical seal of the pharyngeal, laryngeal and perilaryngeal structures while avoiding compression trauma. I-GEL is designed for use in securing and maintaining a patient airway in routine and emergency anesthetics for operations of fasted patients during spontaneous or intermittent positive pressure ventilation (IPPV). It is available in three adult and four pediatric sizes and is supplied in an innovative, color-coded polypropylene protective cradle. Key Benefits: * 15 mm connector – reliable connection to any standard catheter mount or connection * Clearly displayed product information – for quick, easy reference and confirmation of size and weight guidance * Position guide – easy confirmation of optimum insertion depth * Gastric channel – improves and enhances patient safety, and allows for suctioning and passing of a nasogastric tube and facilitates venting * Integral bite block – reduces the possibility of airway channel occlusion * Buccal cavity stabilizer – aids insertion and eliminates the potential for rotation * Epiglottis blocker – reduces the possibility of epiglottis ‘down folding’ and airway obstruction * The non-inflatable cuff – made from a unique soft gel-like material allowing ease of insertion and reduced trauma CHECK OUT THE NEW i-gel O2 RESUS PACKS!

In emergency medicine, you need equipment that’s easy, rapid and reliable to use. The i-gel O2 Resus Pack contains everything you need to prepare, insert and secure the i-gel O2 quickly and efficiently. The i-gel O2 incorporates a supplementary oxygen port and an integral hook ring for securing of the airway support strap. The i-gel O2 has been designed to facilitate ventilation as part of standard resuscitation protocols, such as those designated by the European Resuscitation Council (ERC) and the American Heart Association (AHA). However, the i-gel O2 incorporates a supplementary oxygen port, so that it can also be used for the delivery of passive oxygenation, or Passive Airway Management (PAMTM), as part of an appropriate CardioCerebral Resuscitation (CCR) protocol. Kit Contains: * i-gel O2 supraglottic airway * Sachet of lubricant * Airway support strap

Eco, Oxygen Mask, Aerosol, Non-PVC, Adult

Eco, Oxygen Mask, 7in Oxygen Tubing, Adult

The phthalate-free EcoLite Tracheostomy mask offers a high quality, lightweight option with a quick-release system for optimum ease of use. Latex and PVC Free.

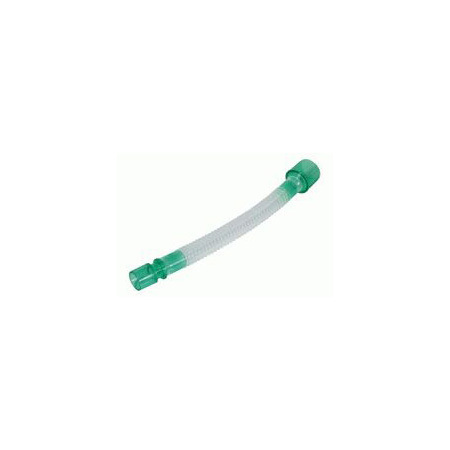

The Superset™ range of catheter mounts have a concertina design to allow for positioning control. This allows the catheter mount to be set in any required position. The range is available with fixed and swivel elbows and a variety of ports for all applications. All Intersurgical port caps are retainable for safety; fixed to the port connectors to ensure that they cannot be misplaced in use. Flip top cap with 7.6mm port - for connection of all standard 7.6mm probes or suctioning. Luer ports - for secure attachment of gas sampling lines with luer lock fittings. Double flip top cap with seal - opening the first tab on the cap allows for the introduction of a fiber optic bronchoscope while maintaining airway pressure. Opening the second tab allows for suctioning if required.

ClearLite offers a range of anesthetic face masks across seven sizes to meet the clinical needs of most patient types and sizes. The enhanced anatomical design of the ClearLite mask offers superior seal performance with minimal pressure which reduces the risk of unnecessary discomfort or potential trauma. Crystal clear body provides excellent visibility for confirmation that the patient is well perfused. ClearLite masks are non-PVC and phthalate free which significantly minimizes the impact on the environment. Features: * A range of sizes for patients (neonate to extra-large adult) * Clear body and color-coded seal * DEHP Free * Non-PVC material * Neonate and infant sizes do not feature a hook ring

Double swivel elbow 15M - double flip top cap with seal - 22M/15F

Spherasorb’s chemical formulation has been developed specifically to address the potential problems of use within the medical environment. Features and Benefits * Only 1.5 % Sodium Hydroxide. * Zeolite to reduce the risk of drying out. * Spherasorb is made of 3-4mm spheres processed to minimise potential dusting.

Spherasorb® has independently proven benefits of reducing the risk of reactions with volatile anesthetics.

Intersurgical offers a full range of T-Piece Connectors with optional ports available in 15OD, 15ID, 22OD, and 22ID ISO connections.

CO2 sampling line for Microstream (Oridion) capnography.

Silente, Intersurgical EcoLite, adult, adjustable venturi mask kit with tube, 1.8m

An adult high concentration oxygen mask, also known as a partial and non rebreathing mask. This mask can provide concentrations of oxygen up to 80% at flows of 10-15 l/min (these values are approximate and depend on the patients breathing pattern). * A soft, thermoplastic elastomeric, face seal ensures a greater level of patient comfort. * An incurved nose seal designed to prevent oxygen entering the patient® eyes. This eliminates the need for a separate metal nose clip making the product MRI compatible. * The unique nose seal is designed to equalize the pressure exerted on the nose as the seal conforms to differing nose shapes. * These design features combine to provide an improved seal on the patient® face, which in turn, results in higher oxygen concentrations as less ambient air enters the mask. * The mask retaining elastic can be fitted either above or below the patient® ears depending on the patient® face shape. In the “below ear” position it eliminates the discomfort and longer term trauma created by elastic to the top of the patient® ears. * A choice of “under chin” or “on chin” positions provides a better fit on a wider range of patient face shapes. * Low resistance safety valves allow the patient to breathe room air should the oxygen supply fail or be inadequate to meet peak flow requirements. * The material forming the body of the mask is clear, permitting visualisation of the patient® nose and lips. It is also rigid enough to maintain the mask® shape during transportation and use.

Disposable straight connector.

A heat and moisture exchanger designed for use on tracheostomised patients. The Hydro-Trach T is an ideal product for prolonged use with spontaneously breathing patients and has the following features and benefits: * Clipped suctioning port * Integral swivel oxygen connector * Anti-occlusion mechanism Heat and moisture exchanger for use on tracheotomised patients. * Moisture loss: 13.2mg H2O/l * Calculated Moisture Return: 26 mg H2O/I * Resistance at 30L/min: 0.2 cm H20 * Resistance at 60L/min: 0.7 cm H20 * Compressible volume: 19 ml * Weight: 8 g * Connectors: 15F * Minimum tidal volume: >60ml

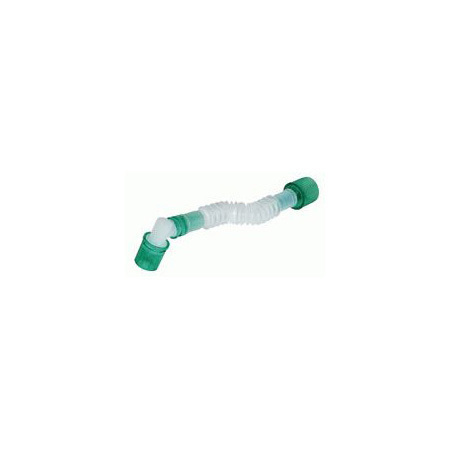

The Superset range of catheter mounts have a concertina design to allow for positioning control. This allows the catheter mount to be set in any required position. The design allows the adjustment of deadspace from 20ml to 40ml (code 3504: 15-36ml) and the adjustment of length from 70mm to 150mm, excluding connectors (code 3504) for total control. The range is available with fixed and swivel elbows and a variety of ports for all applications. All Intersurgical port caps are retainable for safety; fixed to the port connectors to ensure that they cannot be misplaced in use. Flip top cap with 7.6mm port - for connection of all standard 7.6mm probes or suctioning. Luer ports - for secure attachment of gas sampling lines with luer lock fittings. Double flip top cap with seal - opening the first tab on the cap allows for the introduction of a fibre optic bronchoscope whilst maintaining airway pressure. Opening the second tab allows for suctioning if required.

i-view is the new, single use, fully disposable* video laryngoscope from Intersurgical, providing the option of video laryngoscopy wherever you might need to intubate. By incorporating a Macintosh blade, i-view can also be used for direct laryngoscopy. The technique for insertion is more familiar and instinctive than for devices with a hyper-angulated blade. i-view is ready to use seconds after removing from the packaging. The ergonomic design ensures i-view is easy to use and the integral LCD screen provides an optimal view in a variety of light conditions. i-view provides the opportunity of video laryngoscopy 'whenever and wherever you might need to intubate' The availability of a video laryngoscope may be limited due to the cost implications of purchasing reusable devices for multiple sites. By combining all the advantages of a fully integrated video laryngoscope in a single use, disposable product, i-view provides a cost effective solution. i-view is ideal for use in: * Pre-hospital * Emergency medicine * Resuscitation * Anesthesia * Difficult airway * Intensive care

Key benefits: * Straight * 22Fr ID

SmartCan™ Spherasorb™ disposable CO2 absorber white to violet color change, for use with GE Healthcare® 600 series Carestation® anesthetic machines. The SmartCan™ offers ease of exchange with minimal handling and provides a further option for customers who have made the choice to use pre-fills and is provided with Spherasorb™ medical grade soda lime. A uniquely designed medical grade soda lime, Spherasorb’s™ chemical formulation has been developed specifically to address the potential problems of use within the medical environment, while maintaining the highest possible CO2 capacity. Spherasorb™ has a long history of use within anesthesia and meets all the requirements of the United States and British Pharmacopoeias. Features: * Only 1.5 % Sodium Hydroxide * Zeolite to reduce the risk of drying out * Spherasorb™ is made of 3-4mm spheres processed to minimize potential dusting

Introducing Intersurgicals new right-angled water traps for the collection of condensation.Ideal for use in applications where a 90° attachment may be required. The self-sealing facility allows the water trap to be emptied without interrupting flow. Features a 22ID machine-side connection to a 22OD breathing system-side connection, and can be attached directly to a ventilator or to an anesthetic machine. * Right-anged * 70mL Medium Volume

Multi-channel, non-PVC tubing in a 2.1 meter length.

Filtration Efficiency: >99.999% Resistance at 30L/min: 1.0cm H2O Resistance at 60L/min: 2.3cm H2O Compressible volume: 67ml Weight: 40g Connections: 22F-22M/15F Minimum tidal volume: >200ml All quoted performance figures are mean values.

The MultiOx adjustable venturi valve offers seven oxygen concentrations. A large body diameter provides space for clear, widely-spaced calibration and incorporates a ‘pull-twist’ action preventing accidental adjustment. The one-piece design eliminates the need to use more than one valve for all concentrations and contains no separate pieces that may get lost or mislaid. Ease of Use The MultiOx adjustable venturi valve is simple to use and has the following features and benefits: * The anti-tamper ring with the ‘pull-twist’ action selects the prescribed oxygen concentration * A flow in L/min is printed next to each concentration indicating the optimum flow meter setting. These flows have been selected to ensure that the patient receives a total flow of approximately 40 L/min. This is designed to meet the patient’s “normal peak inspired flow” requirements. Precision The MultiOx delivers precise oxygen concentrations in compliance with ISO Standard EN 13544-3:2001. This accuracy is independent of the oxygen flow meter setting and is achieved using just one valve. The concentration delivered is unaffected by the patient’s breathing pattern provided that the optimum flow indicated on the valve is set on the oxygen flow meter. Environment Both adult and pediatric mask kits are supplied with Eco aerosol masks. The Eco aerosol mask has been designed as part of our ongoing focus on sustainable development, which is an integral part of our ethos. The Eco range, unlike traditional masks, contains no PVC. This results in a significantly lower impact on the environment. By utilizing the latest technology we have combined two materials: the first forms the clear rigid shell of the mask, (this provides a strong lightweight body with good visibility), while the second softer material forms the seal, (providing a comfortable fit for a wide variety of face shapes). All of these features provide improved patient comfort.
