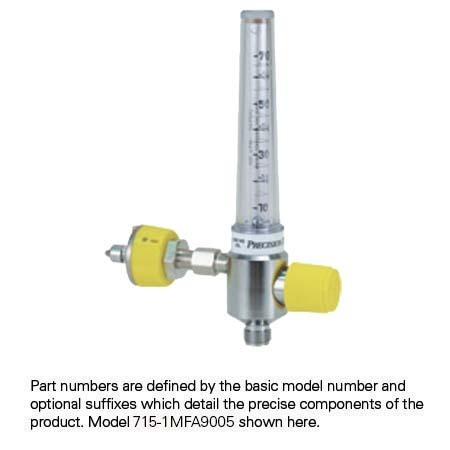

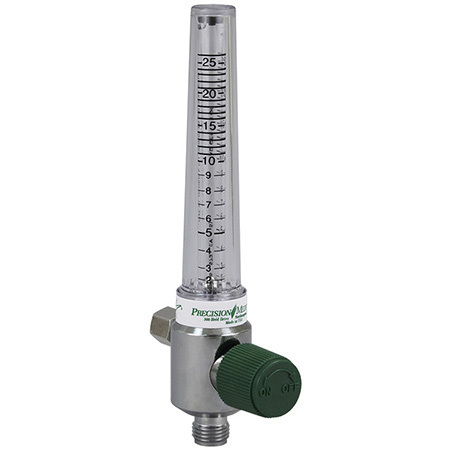

Tee branch, chrome body, oxygen flowmeters are versatile, multi-purpose and space saving. * Tee branches turn one outlet into two by allowing attachment of two flowmeters which can deliver oxygen or medical air to two separate areas. * The demand valves allow attachment of other equipment further saving space and expanding versatility. * The compact nature of these units eliminates clutter on the headwall. * Clinical personnel are always looking for another outlet to hook-up another ventilator, flowmeter, resuscitation bag or suction regulator. These units provide an outlet when and where they need one. * The units are constructed of aluminum providing a lightweight piece of equipment that is not a strain on wall outlets.

It is the only freestanding pneumatic HeliO2 blending device on the market today. The ability to turn the bleed control collar ON or OFF provides ± 3% FIO2 accuracy as well as quieter operation and maximal heliox tank durations. The tough housing makes the unit durable and the selection control knob is recessed to prevent inadvertent changes in FIO2. The modular design can reduce maintenance time and costs. The unit can be easily maintained by all biomed departments.

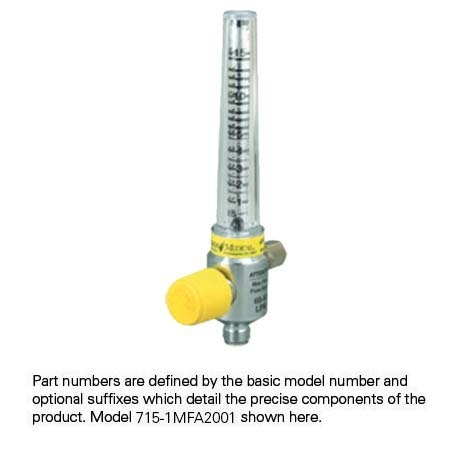

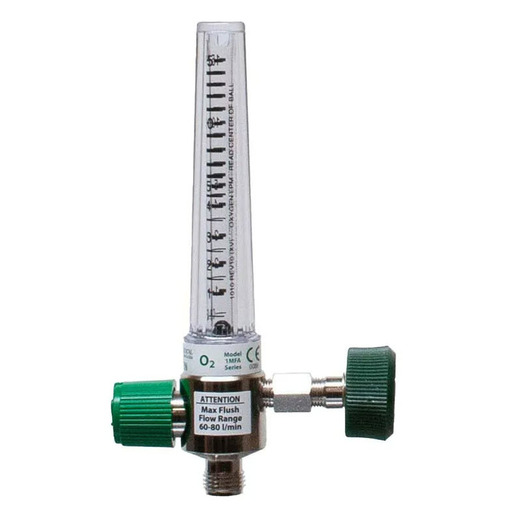

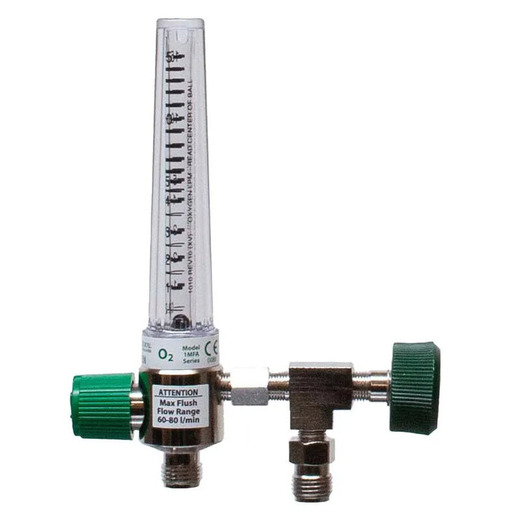

The polycarbonate housings are extremely durable and impervious to chemical solutions normally used in a clinical setting preventing clouding and spidering. The polycarbonate flow tubes ensure durability. These flowmeters use black glass flow indicator balls with an exceptional sphericity and uniform weight contribute to a more accurate flowmeter than those using plastic floats. The highly accurate needle valves ensure precise flow-settings the first time...every time. The flow control knob is on the front of the flowmeter in clear sight of the operator unlike side mount knobs which are susceptible to damage during installation of additional equipment. The black glass float makes the flow setting easy to read. Specifications: * Scale: 0-15 LPM * Increments: * 0.5 LPM from 0.5 to 5 LPM * 1 LPM from 5 to 15 LPM * Accuracy: * ±0.25 LPM from 0.5 to 5 LPM * ±0.5 LPM above 6 to 15 LPM * Flush Flow: 60-80 LPM * Available with a variety of configurations (see item names and specifications)

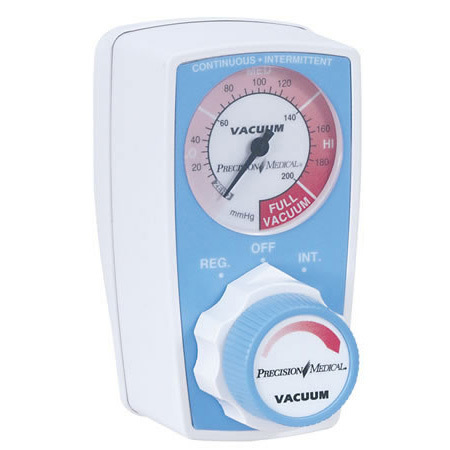

The unique modular design makes repair a breeze for any biomed or central supply department. The unit is made up of six (6) easy-to-replace modular components. Unlike the normal plastic inlet and outlet connections on most units, the cast metal backplate connections are extremely durable, thereby saving unnecessary repair costs. As a result of its modular design, the unit is 25-50 percent smaller than other suction regulators making it the product of choice for crowded wall and rail areas. The case is made of strong ABS plastic. It features a smooth surface with rounded corners making cleaning easy. The case also houses the gauge for extra protection. The large control knob with its three (3) easy-to-read settings make vacuum adjustments simple, even in emergency situations. Specifications: * Bottom Connection (inlet) - 1/8 inch NPTF* Gauge Range: 0-300mmHg - Full Vacuum* Gauge Accuracy:Analog: ± 5% of MaxDigital Gauge: ± 1% of Full ScaleAnalog Gauge: ± 5% of MAX within ref. indicator* Maximum Vacuum:REG. Mode @ Full Vac - 396 mmHg* Weight: 1.1 lbs. (.48 kg)* Dimensions: 3.7 in. (9.4 cm), 2.8 in. (7.1 cm), 5.2 in. (13.2 cm)

Preset your desired suction level. When activated, the preset level and gauge reading can be used to check for system leaks. The case is made of ABS plastic and houses the gauge for extra protection. Specifications: * Gauge Accuracy: Analog: ± 5 % of Max Digital Gauge: ± 1% of Full Scale Analog Gauge: ± 5% of MAX within ref. Indicator * Vacuum Ports: 1/8 NPT Female * Modes: LINE - OFF - REG * Maximum Vacuum: PM3300: REG. Mode @ Full Vac - 396 mmHg (53 kPa) PM3400: Restricted to 170 mmHg (23 kPa) ± 10 mmHg (1.3 kPa) * Weight: 1.1 lbs. (.48 kg) * Dimensions: Length: 3.7 in. (9.4 cm), Width: 2.8 in. (7.1 cm), Height: 5.2 in. (13.2 cm) * 3 Volt Lithium, ½ AA (Digital Vacuum Gauge Models ONLY)

Flow Selector features include:* DISS Female Hand Tight Inlet* 2 Tubing Barb Outlets* 1 DISS Male Connection Outlet

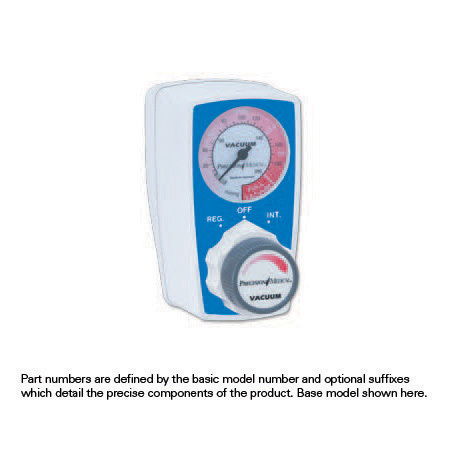

The unique modular design makes repair a breeze for any biomed or central supply department. The unit is made up of six (6) easy-to-replace modular components. Unlike the normal plastic inlet and outlet connections on most units, the cast metal backplate connections are extremely durable, thereby saving unnecessary repair costs. As a result of its modular design, the unit is 25-50 percent smaller than other suction regulators making it the product of choice for crowded wall and rail areas. The case is made of strong ABS plastic. It features a smooth surface with rounded corners making cleaning easy. The case also houses the gauge for extra protection. The large control knob with its three (3) easy-to-read settings make vacuum adjustments simple, even in emergency situations. Specifications: * Gauge Range: PM3300: 0-200mmHg - Full Vacuum PM3300HV: 0-300mmHg - Max Vacuum PM3400: 0-150mmHg * Gauge Accuracy: Analog: ± 5% of Max Digital Gauge: ± 1% of Full Scale Analog Gauge: ± 5% of MAX within ref. indicator * Vacuum Ports: 1/8 NPT Female * Modes: LINE, OFF, REG * Maximum Vacuum: PM3300: REG. Mode @ Full Vac - 396 mmHg PM3400: Restricted to 170 mmHg (23 kPa) ± 10 mmHg * Weight: 1.1 lbs * Dimensions: 3.7in L x 2.8in W x 5.2in H * Battery: 3 Volt Lithium, ½ AA (Digital Vacuum Gauge Models ONLY)

Tubing Nipple features include:* Barb x 1/8 NPT Male* Straight

HeliOx Regulator is an accessory part.

Timox Oxygen Timer features include:* Unit is easily reset to zero with tip of pen or pencil* Extremely accurate time measurement with time increments of 0.1 hours* Large easy to read time display* Up to 1999.9 recorded hours of oxygen flow* Compact, lightweight and durable design* Field-serviceable battery with an expected life of five years* Maximum Pressure - 200 PSI

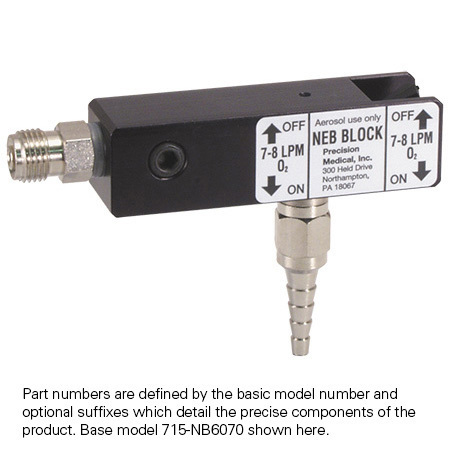

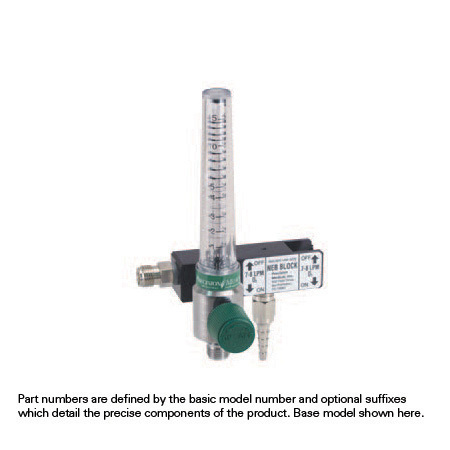

Neb treatments, resuscitation bags or equipment power are all available with this unique product. All equipment can be kept connected and ready for use when needed. You simply need to push the switch from OFF to ON to deliver a neb treatment or to utilize a resuscitation bag.

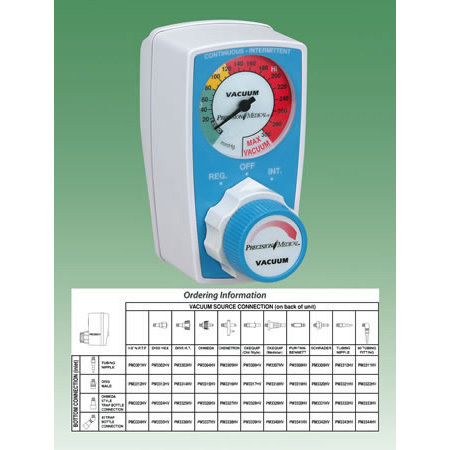

The unique modular design makes repair a breeze for any biomed or central supply department. The unit is made up of six (6) easy-to-replace modular components. Unlike the normal plastic inlet and outlet connections on most units, the cast metal backplate connections are extremely durable, thereby saving unnecessary repair costs. As a result of its modular design, the unit is 25-50 percent smaller than other suction regulators making it the product of choice for crowded wall and rail areas. The case is made of strong ABS plastic. It features a smooth surface with rounded corners making cleaning easy. The case also houses the gauge for extra protection. The large control knob with its three (3) easy-to-read settings make vacuum adjustments simple, even in emergency situations. Specifications: * Bottom Connection (inlet) - Tubing Nipple* Gauge Range: 0-300mmHg - Full Vacuum* Gauge Accuracy:Analog: ± 5% of MaxDigital Gauge: ± 1% of Full ScaleAnalog Gauge: ± 5% of MAX within ref. indicator* Maximum Vacuum:REG. Mode @ Full Vac - 396 mmHg* Weight: 1.1 lbs. (.48 kg)* Dimensions: 3.7 in. (9.4 cm), 2.8 in. (7.1 cm), 5.2 in. (13.2 cm)

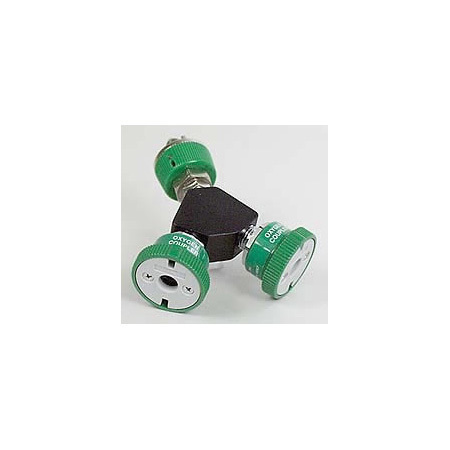

Medical Air Quick Connect Wye features include:* Chemetron Wye Block Assembly - 2 Chemetron Couplers* Maximum Pressure - 200 PSI* Primary Check Only

Endotracheal Tube Holder features include:* Fully Padded* Sturdy Bite Block* Adjustable Strap

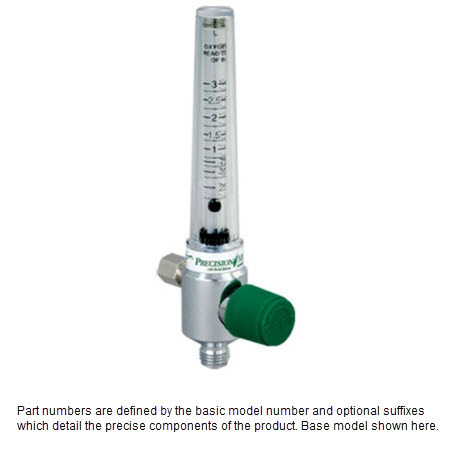

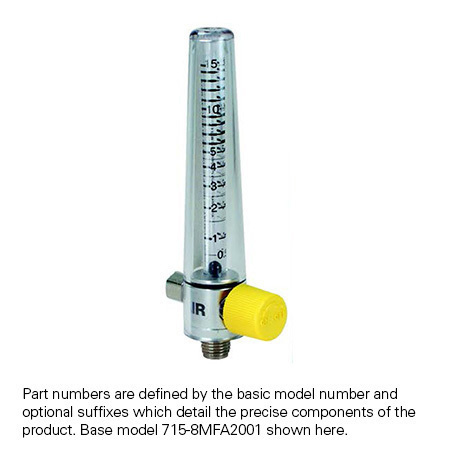

The compact flowmeter's polycarbonate housing extends over the lightweight aluminum body providing superior durability. The housing is impervious to chemical solutions normally used in a clinical setting. The state of the art housing incorporates a white background that makes the flow settings easier to read. The contemporary design results in a smaller unit that fits more easily into space-cramped wall rails. Unlike side mounted knobs which are susceptible to damage, the flow control knobs are on the front of the flowmeter in clear sight of the operator. The flowmeters use black glass flow indicator balls. The properties of black glass, superior sphericity and exceptionally uniform density, insure that the flowmeter is more accurate then flowmeters utilizing plastic floats. Variety of options available. Specifications for 0-8 LPM Models: * Scale: 0-8 LPM * Increments: 0.5 LPM (starts at 0.5 LMP) * Accuracy: ±0.25 LPM * Flush Flow: 40-60 LPM Specifications for 0-15 LPM Models: * Scale: 0-15 LPM * Increments: 0.5 LPM from 0.5 to 5 LPM 1 LPM from 5 to 15 LPM * Accuracy: ±0.25 LPM from 0.5 to 5 LPM ±0.5 LPM above 6 to 15 LPM * Flush Flow: 40-60 LPM

Evacuation/WAGD Quick Connect Coupler has a maximum pressure rating of 200 PSI.

Vacuum Quick Connect Adapter has a maximum pressure rating of 200 PSI and all pipe fittings are National Pipe Threads..

Suction Canister is a replacement part as detailed in user manual.

No additional details available at this time.

Yoke Seal features include:* Neoprene* Brass outer ring

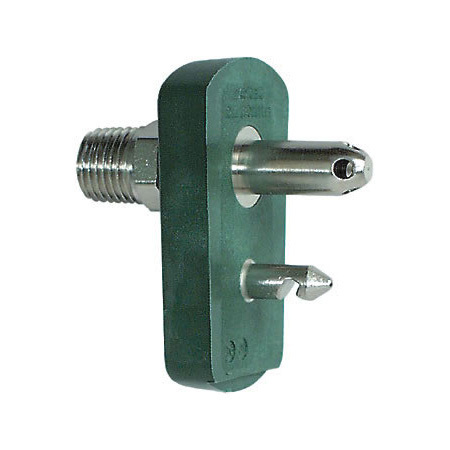

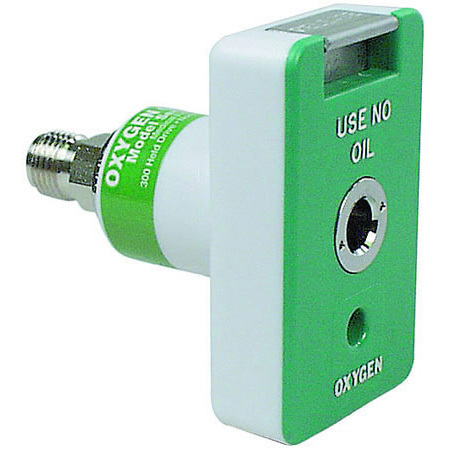

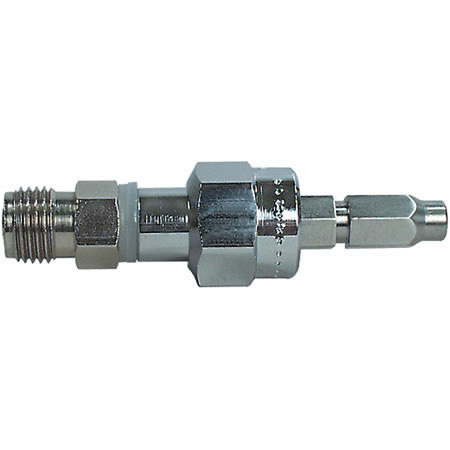

Oxygen Quick Connect Adapter has a maximum pressure rating of 200 PSI and all pipe fittings are National Pipe Threads..

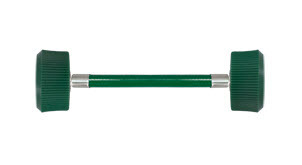

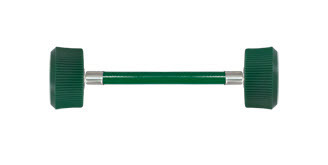

Hose designed for oxygen delivery.

No additional details available at this time.

Air Hose designed for medical air delivery.
