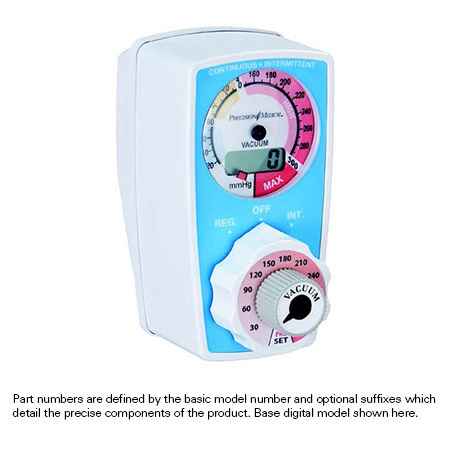

Cont/Int Vacuum Preset Suction Regulators, DISS Male
The unique modular design makes repair a breeze for any biomed or central supply department. The unit is made up of eight (8) easy-to-replace modular components. Unlike the normal plastic inlet and outlet connections on most units, the cast metal backplate connections are extremely durable, thereby saving unnecessary repair costs. As a result of its modular design, the unit is 25-50 percent smaller than other suction regulators making it the product of choice for crowded wall and rail areas. The case is made of strong ABS plastic. It features a smooth surface with rounded corners making cleaning easy. The case also houses the gauge for extra protection. The large control knob with its three (3) easy-to-read settings make vacuum adjustments simple, even in emergency situations.
- Bottom Connection (inlet) - DISS Male
- Gauge Range:
0-200 mmHg and “Full Vacuum”
0-300mmHg and "Max Vacuum"
- Gauge Accuracy:
Analog: ± 5% of Max
Digital Display: ± 1% of Full Scale
Analog Gauge: ± 5% of MAX within ref. indicator
- Preset Range: ±10mmHg of setting
- Maximum Vacuum:
REG. Mode @ Full Vac - 396 mmHg
- Weight: 1.2 lbs. (.56 kg)
- Dimensions: 4.4 in. (11.2 cm), 2.8 in. (7.1 cm), 5.3 in. (13.4 cm)
