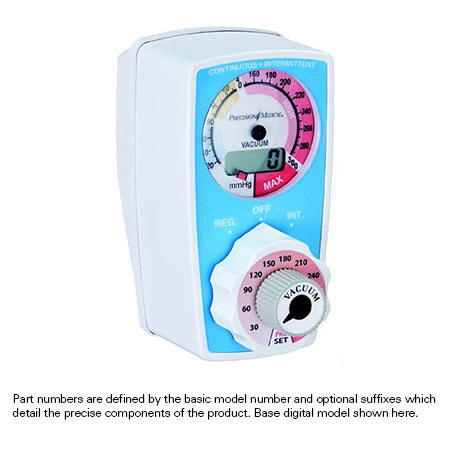

The unique modular design makes repair a breeze for any biomed or central supply department. The unit is made up of six (6) easy-to-replace modular components. Unlike the normal plastic inlet and outlet connections on most units, the cast metal backplate connections are extremely durable, thereby saving unnecessary repair costs. As a result of its modular design, the unit is 25-50 percent smaller than other suction regulators making it the product of choice for crowded wall and rail areas. The case is made of strong ABS plastic. It features a smooth surface with rounded corners making cleaning easy. The case also houses the gauge for extra protection. The large control knob and easy-to-read settings make vacuum adjustments simple, even in emergency situations. The Pediatric vacuum regulator is restricted to 170 mmHg (±10 mmHg) to prevent high vacuum situations and the gauge face is imprinted with the Precision Medicals "Stork Symbol" to identify the unit for pediatric applications.

Key Benefits:

• Bottom Connection (inlet) - None
• Gauge Range:
  PS3300: 0-200 mmHg and "Full Vacuum"
  PS330HV: 0-300mmHg and "Max Vacuum"
• Gauge Accuracy:
  Analog: ± 5% of Max
  Digital Gauge: ± 1% of Full Scale
  Analog Gauge: ± 5% of MAX within ref. indicator
• PreSet Range: ±10mmHg of setting
• Modes: OFF - REG - INT
• Maximum Vacuum: REG. Mode @ Full Vac- 396 mmHg
• Weight: 1.2 lbs. (.56 kg)
• Dimensions: 4.4 in. (11.2 cm), 2.8 in. (7.1 cm), 5.3 in. (13.4 cm)
