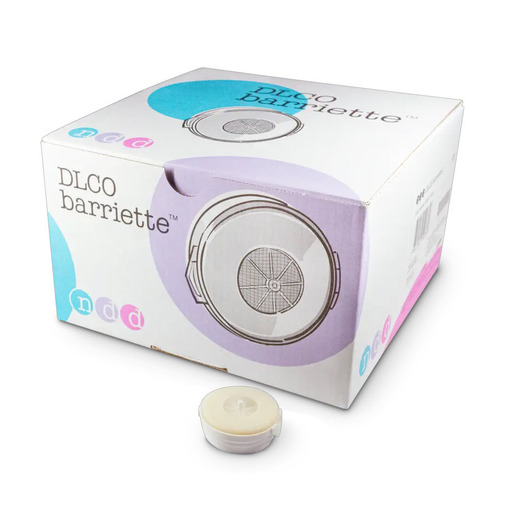

The ndd DLCO Barriettes fulfill the purpose of a physical barrier in the EasyOne Pro / LAB system. This avoids cross-contamination between patients and reduces cleaning of the device.
The form of the ndd DLCO Barriette has been engineered to complete the EasyOne Pro / LAB system for DLCO testing, to guarantee reliable and high quality measurement results.
DLCO Barriettes are single-patient use disposables.

Features:

• Designed and precision manufactured by ndd
• Physical barrier for infection control
• Easy handling for technicians
• No expiration date
• No special storage condition required

Specifications:

Material

• DLCO Barriette: Thermoplastic Elastomer (TPE) and Linear Low Density Polyethylene (LLDPE)
• Bag: Polyethylene (PE)

Transport and storage information

• Temperature range: -20 to 50°C (-4° to 122°F)
• Relative humidity: 5 to 95%
• Atmospheric pressure: 400 to 1060 hPa

Dimension (H x W x D) and weight

• Single DLCO Barriette: 40 x 40 x 20 mm and 6 g (1.6 x 1.6 x 0.8 in and 0.2 oz)
• Dispenser box: 12 x 19 x 19 cm and 0.45 kg (4.7 x 7.5 x 7.5 in and 1 lb)
• Packaging box - 50 DLCO Barriettes: 12 x 19 x 19 cm and 0.45 kg (4.7 x 7.5 x 7.5 in and 1 lb)
• Packaging box - 100 DLCO Barriettes: 25 x 20 x 20 cm and 0.8 kg (10 x 8 x 8 in and 1.8 lb)
