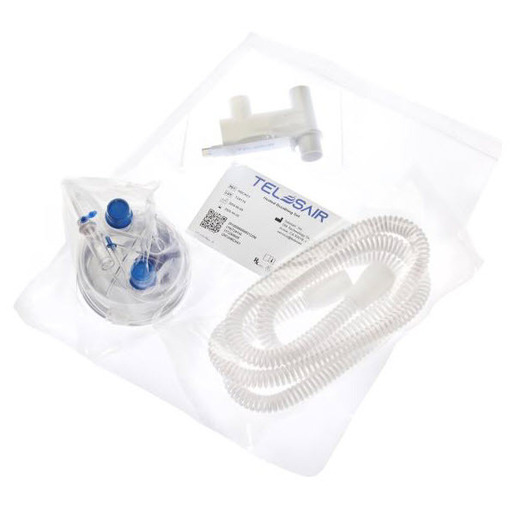

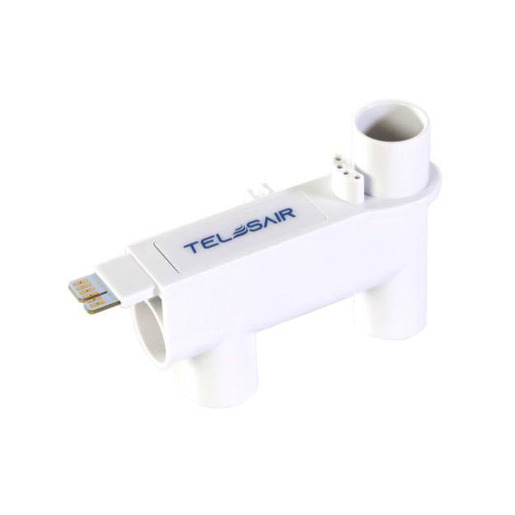

The Telesair® Heated Breathing Circuit Pack helps provide continuous humidity to dry gas and maintains heat and humidification of the gas during high flow oxygen therapy. The pack contains a single use intelligent water chamber adapter, a water chamber and a heated breathing circuit.

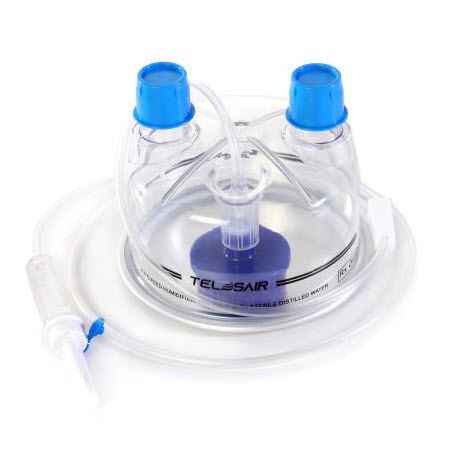

Water Chamber:

• Duration of use: 7 Days, Single-Patient
• Designed for Pediatric, Adult patients
• Fill Water Type: Automatically
• Maximum Water Capacity: 150mL
• Maximum Peak Flow: 180ml/min
• Compatibility: ISO 80601-2-74

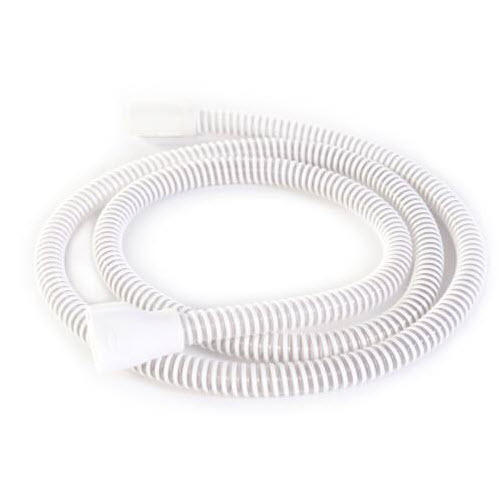

Heated Breathing Circuit:

• Duration of use: 7 Days, Single-Patient
• Designed for Pediatric, Adult patients
• Circuit Length: 200 ± 20 cm
• Compatibility ISO 5367, ISO 5356, ISO 80601-2-74, IEC 60601-1, IEC 60601-1-2

The Telesair® Bonhawa Humidifier represents the next generation of high flow therapy, engineered around clinician needs with three key innovations: faster disinfection processing time, higher flow up to 70 LPM, and remote monitoring capability through our large front-facing touchscreen. Drive better outcomes with humidification across all flows and quick therapy delivery - no delays, just optimal patient care. Bonhawa Humidifier delivers more time for patient care and less time on device management.

Performance: Advanced Respiratory Support When It Matters Most

• Extended Flow Range:
• Up to 70 LPM to cover broader patient acuity
• Real-Time Monitoring: Large forward-facing touchscreen (10.9cm x 6.1 cm / 4.3in x 2.4in) enables monitoring from across the room
• Optimal Humidification: Delivers >33 mg/L relative humidity at 37°C setting
• Fast Warm-Up: Only 10 minutes to reach 31°C and 34°C, 30 minutes for 37°C
• Confirmed Therapy: Real-time changes in device output and status for reduced risk of user error

Efficiency: Streamlined Workflow, Reduced Total Cost of Ownership

• Quick Disinfection: Up to 90% reduction in disinfection time - simply change disposables and wipe down
• Intuitive Operation: “Touch, Turn, Touch” capability for quick, easy setting changes that can be done with one hand
• Patient Turnover: Switch between patients with minimal effort in less than 10 minutes
• Innovative Gas Path: located external to the device for quick disinfection and quick turnaround

Versatility: Adaptable Solutions for Your Clinical Scenario

• Continuous Therapy On-The-Go: Over 90 minutes of battery life when used with the UPS 90 Pure transport battery solution
• Maintain Critical Care: Heat and humidity remain active during transport for uninterrupted therapy
• Choose from Pediatric & Adult Modes: Flow settings from 2-25 LPM for pediatric patients and 10-70 LPM for adults
• Universal Compatibility: Works with any standard 22mm cannula connection, but is optimized when used with Bonhawa cannulas rated for up to 70 LPM of flow
