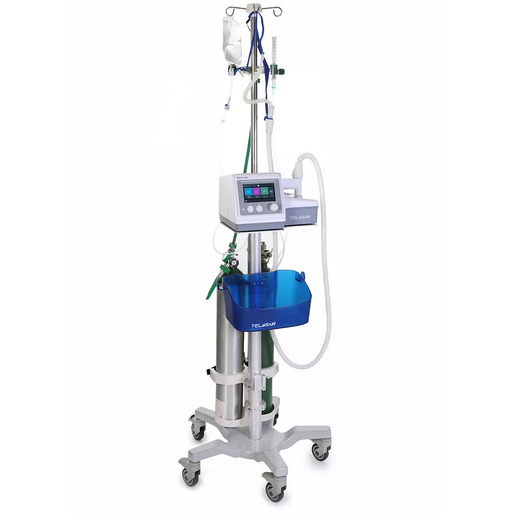

The Telesair® Bonhawa Humidifier represents the next generation of high flow therapy, engineered around clinician needs with three key innovations: faster disinfection processing time, higher flow up to 70 LPM, and remote monitoring capability through our large front-facing touchscreen. Drive better outcomes with humidification across all flows and quick therapy delivery - no delays, just optimal patient care. Bonhawa Humidifier delivers more time for patient care and less time on device management.

Performance: Advanced Respiratory Support When It Matters Most

• Extended Flow Range:
• Up to 70 LPM to cover broader patient acuity
• Real-Time Monitoring: Large forward-facing touchscreen (10.9cm x 6.1 cm / 4.3in x 2.4in) enables monitoring from across the room
• Optimal Humidification: Delivers >33 mg/L relative humidity at 37°C setting
• Fast Warm-Up: Only 10 minutes to reach 31°C and 34°C, 30 minutes for 37°C
• Confirmed Therapy: Real-time changes in device output and status for reduced risk of user error

Efficiency: Streamlined Workflow, Reduced Total Cost of Ownership

• Quick Disinfection: Up to 90% reduction in disinfection time - simply change disposables and wipe down
• Intuitive Operation: “Touch, Turn, Touch” capability for quick, easy setting changes that can be done with one hand
• Patient Turnover: Switch between patients with minimal effort in less than 10 minutes
• Innovative Gas Path: located external to the device for quick disinfection and quick turnaround

Versatility: Adaptable Solutions for Your Clinical Scenario

• Continuous Therapy On-The-Go: Over 90 minutes of battery life when used with the UPS 90 Pure transport battery solution
• Maintain Critical Care: Heat and humidity remain active during transport for uninterrupted therapy
• Choose from Pediatric & Adult Modes: Flow settings from 2-25 LPM for pediatric patients and 10-70 LPM for adults
• Universal Compatibility: Works with any standard 22mm cannula connection, but is optimized when used with Bonhawa cannulas rated for up to 70 LPM of flow

Telesair® Medical Trolley is equipped with a metal tray for the device and an extra storage shelf.

The medical trolley comes in three pieces: base with castors, trolley, and blue pole basket.

Features:

• Trolley Size: 135~200 cm
• Adjust Way: 60 x 60 x 200 cm
• Overall Loadbearing Material: Aluminum alloy, stainless steel
• Hook Load: 12 kg
• Length: 4 kg (single hook 2 kg)
• Castor: Five 3 in castors; two with brake

Telesair® Ventilator Support Arm helps provide medication delivery with proper setup on the Bonhawa device. It is a sturdy support that helps secure attachment of the breathing circuit to the oxygen and water tubes with ease.

Features:

• Net Weight: 2.5-3 kg
• Dimension (package): 60 x 48 x 10 cm
• Load: 2 kg
• Rotate: Press Button and Rotate
• Material Steel, Aluminum and Alloy, Plastic
• Length: 133 cm

The Telesair® Heated Breathing Circuit Pack helps provide continuous humidity to dry gas and maintains heat and humidification of the gas during high flow oxygen therapy. The pack contains a single use intelligent water chamber adapter, a water chamber and a heated breathing circuit.

Water Chamber:

• Duration of use: 7 Days, Single-Patient
• Designed for Pediatric, Adult patients
• Fill Water Type: Automatically
• Maximum Water Capacity: 150mL
• Maximum Peak Flow: 180ml/min
• Compatibility: ISO 80601-2-74

Heated Breathing Circuit:

• Duration of use: 7 Days, Single-Patient
• Designed for Pediatric, Adult patients
• Circuit Length: 200 ± 20 cm
• Compatibility ISO 5367, ISO 5356, ISO 80601-2-74, IEC 60601-1, IEC 60601-1-2

Telesair® Transport Battery is an accessory for Bonhawa Humidifier.

Features:

• >90 minutes of continuous therapy
• Heat and humidity active allowing uninterrupted critical humidity care
• No need to worry about power outages or prolonged transport

Specifications:

• Battery is rechargeable
• Digital Display
• Weight = 5 lb
• Power = 120V or 230V
• Dimensions = 11.5 in x 6.5 in x 2 in

Telesair Nasal Cannula, Large

• Length: 35 cm ± 3.5 cm
• Cuff Connector: 22 mm Standard
• Nasal Prongs ID: 0.60 cm ± 0.05 cm
• Spacing between Nasal Prongs: 1.9 cm ± 0.1 cm
• Material: ABS, HDPE, TPE, PP
• Recommended Flow Rate Range: 20 - 80 L/min

Telesair Nasal Cannula, Medium

• Length: 32 cm ± 5 cm
• Cuff Connector: 22 mm Standard
• Nasal Prongs ID: 0.50 cm ± 0.05 cm
• Spacing between Nasal Prongs: 1.50 cm ± 0.05 cm
• Material: ABS, HDPE, TPE, PP
• Recommended Flow Rate Range: 10 - 80 L/min

Telesair Nasal Cannula, Small

• Length: 32 cm ± 5 cm
• Cuff Connector: 22 mm Standard
• Nasal Prongs ID: 0.44 cm ± 0.05 cm
• Spacing between Nasal Prongs: 1.53 cm ± 0.05 cm
• Material: ABS, HDPE, TPE, PP
• Recommended Flow Rate Range:
  • 2 - 25 L/min (Pediatric)
  • 10-40 L/min (Adult)

Telesair® Bonhawa High Flow Oxygen Therapy (HFOT) Air Filters. This is an accessory for Bonhawa Humidifier. Required for use to filter intake air. Visually inspect the filter after each patient and replace monthly. Packaged in a box of 30 individually wrapped.

Features:

• Material: Blended synthetic fiber
• Biocompatibility:
  • ISO 10993-1, 18653-1
  • ASTM Spec ASTM D737
• AVG BFE Efficiency: 99.9996%
• AVG VFE Efficiency: 99.996%
• Air Permeability: >125 CFM

An oxygen tank holder for the Telesair® Medical Trolley Cart.

• Holds up to two oxygen cylinders.

The Telesair®HFOT Flowmeter, Manifold and Bracket Set-Up is a set designed to be used with the Telesair® Bonhawa Humidifier System.

Set Includes:

• (1) Quad block with one DISS hand tight O2 connection on top and three diss male one way valves on bottom
• (1) 70LPM flowmeter, attached to pole mount
• (2) 3ft O2 hoses, diss hand tight on both ends
• (1) 9ft O2 hose, diss hand tight on both ends
