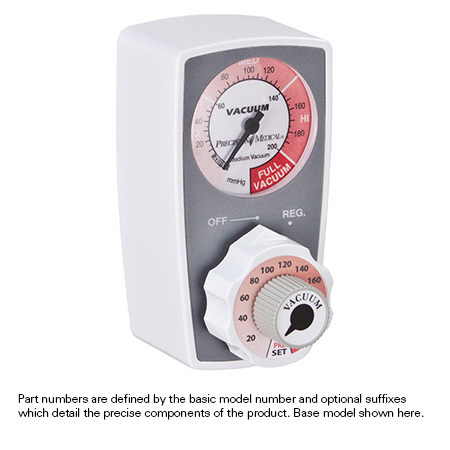

Continuous Vacuum Preset Suction Reg, No Bottom Connectors

Manufacturer: Precision Medical

The unique modular design makes repair a breeze for any biomed or central supply department. The unit is made up of six (6) easy-to-replace modular components. Unlike the normal plastic inlet and outlet connections on most units, the cast metal backplate connections are extremely durable, thereby saving unnecessary repair costs. As a result of its modular design, the unit is 25-50 percent smaller than other suction regulators making it the product of choice for crowded wall and rail areas. The case is made of strong ABS plastic. It features a smooth surface with rounded corners making cleaning easy. The case also houses the gauge for extra protection. The large control knob and easy-to-read settings make vacuum adjustments simple, even in emergency situations. The Pediatric vacuum regulator is restricted to 170 mmHg (±10 mmHg) to prevent high vacuum situations and the gauge face is imprinted with the Precision Medicals "Stork Symbol" to identify the unit for pediatric applications.

Key Benefits:

  • Bottom Connection (inlet) - None
  • Gauge Range: 0-200 mmHg or 0-300mmHg - Full Vacuum
  • Gauge Accuracy:
    Analog: ± 5% of Max
    Digital Gauge: ± 1% of Full Scale
    Analog Gauge: ± 5% of MAX within ref. indicator
  • PreSet Range: ±10mmHg of setting Modes: OFF - REG
  • Maximum Vacuum: PS3000 & PS3100: REG. Mode @ Full Vac - 396 mmHg
  • Weight: 1.1 lbs. (.48 kg)
  • Dimensions: 3.7 in. (9.4 cm), 2.8 in. (7.1 cm), 5.2 in. (13.2 cm)
