Patient Interfaces

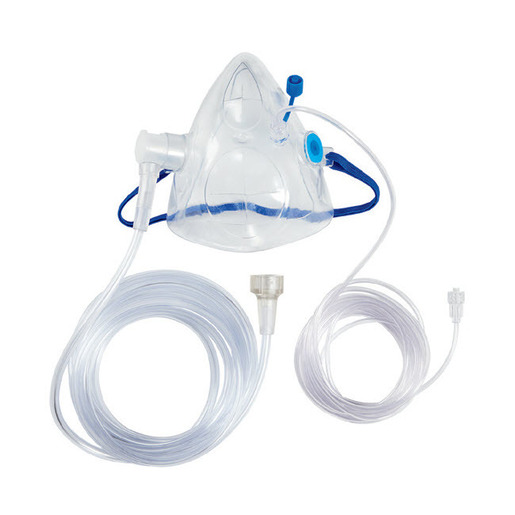

Prevent hypoxemia with the Curaplex® PrO2 Mask The Curaplex® PrO2 Mask is an Endoscopy Oxygen Mask that pro-actively supports oxygenation before, during, and after procedures. The PrO2 Mask is available in multiple configurations for medium and high oxygen requirements and designed for the adult patient. * Nasal Access Port: Facilitates bronchoscopy * Capnography Port: Standard luer at the mask with male, female, or MicroStream monitor connections available * Oral Access Port: Allows introduction of endoscopes and probes * Oxygen Port: Accepts medium concentration elbow or high concentration reservoir bag Benefits: * Supports adequate oxygen delivery throughout procedure * Dual oral and nasal access ports * Provides higher FiO2 than standard EtCO2 cannula * Mask size and shape enhances patient comfort * Monitors continuous waveform capnography * Single device for medium and high oxygen requirements Features: * Available in multiple configurations * Designed for adult patients * Comes with mask and medium concentration elbow * Option of male, female, or MicroStream monitor connections available

Divided Cannula permits end tidal CO2 sampling with simultaneous oxygen delivery.

Curaplex ETCO2/O2 sampling cannulas deliver oxygen while capturing an end tidal gas sample, even with simultaneous insufflation of oxygen. The ETCO2/O2 cannula offerings have both the bright orange reflective style connector and also the yellow extended use connector, compatible with Microstream™, Capnostream™ and Oridion™ capnography monitors. Features: * Simultaneously delivers oxygen while obtaining CO2 sampling during spontaneous breathing * New and efficient in-line filter for improved moisture management * Soft-EarsTM material helps ensure superior patient comfort * The extended use cannulas with the yellow connector are fitted with a section of Nafion tubing in the interface that allows the cannula to function longer and in higher-humidity conditions * Available in two tubing lengths; 7’ and 14’, both with Fits-All Universal O2 connector * 3-Channel tubing prevents kinking

Curaplex ETCO2/O2 sampling cannulas deliver oxygen while capturing an end tidal gas sample, even with simultaneous insufflation of oxygen. The ETCO2/O2 cannula offerings have both the bright orange reflective style connector and also the yellow extended use connector, compatible with Microstream™, Capnostream™ and Oridion™ capnography monitors. Features: * Simultaneously delivers oxygen while obtaining CO2 sampling during spontaneous breathing * New and efficient in-line filter for improved moisture management * Soft-Ears™ material helps ensure superior patient comfort * The extended use cannulas with the yellow connector are fitted with a section of Nafion tubing in the interface that allows the cannula to function longer and in higher-humidity conditions * Available in three tubing lengths; 7’, 10’ and 14’, each with Fits-All Universal O2 connector * 3-Channel tubing prevents kinking

Curaplex® ETCO2/O2 sampling cannulas deliver oxygen while capturing an end tidal gas sample, even with simultaneous insufflation of oxygen. The ETCO2/O2 cannula offerings have both the bright orange reflective style connector and also the yellow extended use connector, compatible with Microstream™, Capnostream™ and Oridion™ capnography monitors. Features: * Simultaneously delivers oxygen while obtaining CO2 sampling during spontaneous breathing * New and efficient in-line filter for improved moisture management * Soft-EarsTM material helps ensure superior patient comfort * The extended use cannulas with the yellow connector are fitted with a section of Nafion tubing in the interface that allows the cannula to function longer and in higher-humidity conditions * Available in two tubing lengths; 7’ and 14’, both with Fits-All Universal O2 connector * 3-Channel tubing prevents kinking

The Sentri Intersurgical EcoLite Mask is an adult, medium concentration oxygen mask with a Luerlock connector enabling the connection of a monitoring line, the other end of which is connected to a capnometer. The Sentri mask is used for measuring end-tidal CO2 (ETCO2) in expired gases while supplying oxygen to the patient. * 2.1m * CO2 monitoring line * Tube

CapnoVue® CO2 Masks with Scope Access separates O2 and CO2 flows for procedures where higher FiO2 is wanted. These masks allow for effective sampling for mouth breathers and upper GI cases while providing patients a higher oxygen delivery where more aggressive oxygenation is needed. The Luer ports located at both expiratory ports separate CO2 from O2 for clean end tidal signals. Features: * Higher oxygen delivery for patients where more aggressive oxygenation is needed * Expiratory ports separate CO2 from O2 for clean end tidal signals * Designed with scope access for upper GI procedures * Available for adult patients with 7-14ft tubing

VentFLO™ ETCO2/O2 sampling cannulas deliver oxygen while capturing an end tidal gas sample, even with simultaneous insufflation of oxygen. These ETCO2/O2 cannulas also feature a bright orange reflective style connector, compatible with Microstream™, Capnostream™ and Oridion™ capnography monitors. Features: * Hygroscopic filter inside reflective connector to help minimize moisture * Simultaneously delivers oxygen while obtaining CO2 sampling during spontaneous breathing * Compatible with Microstream™, Capnostream™ and Oridion™ capnography monitors * Soft-EarsTM material helps ensure superior patient comfort * Designed to prevent mixing of fresh oxygen with CO2 * 3-Channel tubing prevents kinking * Available in three tubing lengths, each with Fits-AllO2 connector

VentFLO™ ETCO2/O2 sampling cannulas deliver oxygen while capturing an end tidal gas sample, even with simultaneous insufflation of oxygen. These ETCO2/O2 cannulas also feature a bright orange reflective style connector, compatible with Microstream™, Capnostream™ and Oridion™ capnography monitors. Features: * Hygroscopic filter inside reflective connector to help minimize moisture * Simultaneously delivers oxygen while obtaining CO2 sampling during spontaneous breathing * Compatible with Microstream™, Capnostream™ and Oridion™ capnography monitors * Soft-Ears™ material helps ensure superior patient comfort * Designed to prevent mixing of fresh oxygen with CO2 * 3-Channel tubing prevents kinking

CapnoVue capnography masks improve capnography with oral nasal sampling for mouth breathers and upper GI cases and higher oxygen delivery for patients where more aggressive oxygenation is needed. Luer ports located at both expiratory ports separate CO2 from O2 for clean signals. Features: * Age Range: Pediatric to Adult * O2 Connector Type: Trumpet * O2 Supply Tubing Length: 7 feet (2.1 m) * Tubing Securement: None * Occlusion Management: Standard * Oral & Nasal Sampling: Oro-nasal Mask * Moisture Management: None * CO2 Connector Type: Female Luer Style
