Precision Medical

Fitting, Hose Barb, 1/4 NPT Female, 5/16th Diameter Hose Barb

T-Piece is an accessory part.

Inline Hydrophobic Filter and Tube Assembly is a replacement part. It cannot be cleaned, If it becomes contaminated or clogged, it must be replaced as detailed in user manual.

Key benefits: * Helps protect accidental occlusion of the tracheostomy tube * Fits all standard 15mm connection tracheostomy tubes, neonatal through adult * Durable construction * Dishwasher safe for easy cleaning at home * Easy suctioning of secretions via large openings in the guard * Will not enable the accidental connection of respiratory equipment with standard 15mm or 22mm connections * Single use

Features: * All pipe fittings are national pipe threads * Maximum Pressure - 200PSI * Vacuum Primary check only

It's InnovativeOnly unit with the dual capacity of subglottic and continuous suction. This allows clinicians to meet VAP prevention guidelines.It's UniqueFlow indicator enables the clinician. To rapidly assess the patency of the subglottic suction lumen.Its PowerfulOut performs traditional suction regulators at low suction pressures used for continuous subglottic suctioning.Its CompactFits into tight headwall systems.It's User FriendlyEasy to read dial and flow indicator.Subglottic Suction Regulator features include: * Scaled Suction Range: 0-85 mmHg (0-11.3 kPa) * Scale Accuracy: +/- 3 mmHg (.4 kPa) * Maximum Regulator Vacuum Setting: 85 mmHg (11.3 kPa) * Flow: 13 LPM @ 20 mmHg up to 37 lpm at Max of 85 mmHg (54 lpm in ”Push to Clear” mode) * Weight: 0.38lbs (0.17kg)

Nitrous Oxide Quick Connect Coupler has a maximum pressure rating of 200 PSI.

The PMX3300 Series Continuous-Intermittent 3 Mode provides reliable and accurate cycling of the regulator On and Off during the intermittent suctioning and has a peak vacuum limit feature to prevent adjusting too high. This series is ideal for sensitive applications where limiting Max vacuum is critically important. The intermittent timing cycle is factory set at 16 seconds on and 8 seconds off. The unique modular design makes repair a breeze for any biomed or central supply department with each unit made of eight (8) easy-to-replace modular components. Unlike the normal plastic inlet and outlet connections on most units, the cast metal backplate connections are extremely durable. The case is made of strong plastic and features a smooth surface with rounded corners for easy cleaning and houses the gauge for extra protection. Large gauge size makes it easy to see suction pressure. The PMX3300 Series Continuous-Intermittent 3 Mode gauge is 50% larger than the PM Series gauge. The large control knob with its three (3) easy-to-read settings make vacuum adjustments simple, even in emergency situations. The Pediatric vacuum regulator is restricted to 170 mmHg (±10 mmHg) to prevent high vacuum situations and the gauge face is imprinted with the Precision Medical's 'Stork Symbol” to identify the unit for pediatric applications. For additional configurations, please contact your account manager. Features: * Analog or Digital Gauge * Continuous-Intermittent 3 Mode * 0-200 or 0-300 mmHg Gauge Range * Gauge Accuracy * Analog: ± 5% of MAX * Digital Gauge: ± 1% of Full Scale * Oxequip Quick Connect Vacuum Source Connection * Wide Range of Patient Connections

Oxygen Quick Connect Coupler has a maximum pressure rating of 200 PSI and all pipe fittings are National Pipe Threads..

Features: * Eliminators resuscitation bag hanger turns on flow when the bag is removed for use, eliminating the need for continuous high oxygen flow to the bag. * When time is critical, you dont want to be hooking up equipment. With the eliminator you simply lift up the bag and flow begins instantly. * The standard configuration is available in three (3) pre-set flows. A fixed-flow barb controls flow to the resuscitation bag.

Vacuum Quick Connect Coupler has a maximum pressure rating of 200 PSI and all pipe fittings are National Pipe Threads..

The unique modular design makes repair a breeze for any biomed or central supply department. The unit is made up of eight (8) easy-to-replace modular components. Unlike the normal plastic inlet and outlet connections on most units, the cast metal backplate connections are extremely durable, thereby saving unnecessary repair costs. As a result of its modular design, the unit is 25-50 percent smaller than other suction regulators making it the product of choice for crowded wall and rail areas. The case is made of strong ABS plastic. It features a smooth surface with rounded corners making cleaning easy. The case also houses the gauge for extra protection. The large control knob with its three (3) easy-to-read settings make vacuum adjustments simple, even in emergency situations. Key Benefits: * Bottom Connection (inlet) - DISS Male * Gauge Range: 0-200 mmHg and “Full Vacuum” 0-300mmHg and ”Max Vacuum” * Gauge Accuracy: Analog: ± 5% of Max Digital/Analog: Digital Display: ± 1% of Full Scale Analog Gauge: ± 5% of MAX within ref. indicator * Preset Range: ±10mmHg of setting * Maximum Vacuum: REG. Mode @ Full Vac - 396 mmHg * Weight: 1.2 lbs. (.56 kg) * Dimensions: 4.4 in. (11.2 cm), 2.8 in. (7.1 cm), 5.3 in. (13.4 cm)

Accessory is a great solution for Blender and Oxygen Monitor. Kit mounts blender and oxygen monitor easily to heliox tank.

Nut features include: * DISS Hand Tight * Oxygen * Green

Power Vac Aspirator features include: * Portable * Hospital Grade Cord * 2000 cc Canister

Features: * Eliminators resuscitation bag hanger turns on flow when the bag is removed for use, eliminating the need for continuous high oxygen flow to the bag. * When time is critical, you dont want to be hooking up equipment. With the eliminator you simply lift up the bag and flow begins instantly. * The standard configuration is available in three (3) pre-set flows. A fixed-flow barb controls flow to the resuscitation bag. The flowmeter operates independent of the Eliminator and can be used for oxygen treatments.

The unique modular design makes repair a breeze for any biomed or central supply department. The unit is made up of eight (8) easy-to-replace modular components. Unlike the normal plastic inlet and outlet connections on most units, the cast metal backplate connections are extremely durable, thereby saving unnecessary repair costs. As a result of its modular design, the unit is 25-50 percent smaller than other suction regulators making it the product of choice for crowded wall and rail areas. The case is made of strong ABS plastic. It features a smooth surface with rounded corners making cleaning easy. The case also houses the gauge for extra protection. The large control knob with its three (3) easy-to-read settings make vacuum adjustments simple, even in emergency situations. Key Benefits: * Bottom Connection (inlet) - Tubing Nipple * Gauge Range: 0-300mmHg - Max Vacuum * Gauge Accuracy: Analog: ± 5% of Max Digital Gauge: ± 1% of Full Scale Analog Gauge: ± 5% of MAX within ref. indicator * Modes: REG - OFF - INT * Maximum Vacuum: REG. Mode @ Full Vac - 396 mmHg * Weight: 1.1 lbs. (.48 kg) * Dimensions: 3.7 in. (9.4 cm), 2.8 in. (7.1 cm), 5.2 in. (13.2 cm)

The PMX3300 Series Continuous-Intermittent 3 Mode provides reliable and accurate cycling of the regulator On and Off during the intermittent suctioning and has a peak vacuum limit feature to prevent adjusting too high. This series is ideal for sensitive applications where limiting Max vacuum is critically important. The intermittent timing cycle is factory set at 16 seconds on and 8 seconds off. The unique modular design makes repair a breeze for any biomed or central supply department with each unit made of eight (8) easy-to-replace modular components. Unlike the normal plastic inlet and outlet connections on most units, the cast metal backplate connections are extremely durable. The case is made of strong plastic and features a smooth surface with rounded corners for easy cleaning and houses the gauge for extra protection. Large gauge size makes it easy to see suction pressure. The PMX3300 Series Continuous-Intermittent 3 Mode gauge is 50% larger than the PM Series gauge. The large control knob with its three (3) easy-to-read settings make vacuum adjustments simple, even in emergency situations. The Pediatric vacuum regulator is restricted to 170 mmHg (±10 mmHg) to prevent high vacuum situations and the gauge face is imprinted with the Precision Medical's 'Stork Symbol” to identify the unit for pediatric applications. For additional configurations, please contact your account manager. Features: * Analog or Digital Gauge * Continuous-Intermittent 3 Mode * 0-200 or 0-300 mmHg Gauge Range * Gauge Accuracy * Analog: ± 5% of MAX * Digital Gauge: ± 1% of Full Scale * DISS Female Hand Tight Vacuum Source Connection * Wide Range of Patient Connections

Key benefits: * Filter/Elbow Assembly for PM60 and PM60E aspirators

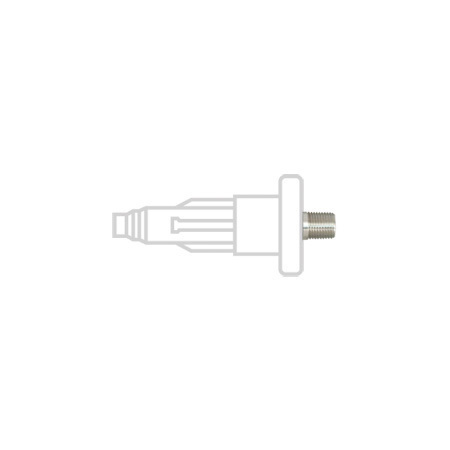

Medical Air Quick Connect Coupler has a maximum pressure rating of 200 PSI and all pipe fittings are National Pipe Threads..

Neb Block keeps all equipment connected and ready for use when needed. Allows user to push switch from OFF to ON to deliver a neb treatment or utilize a resuscitation bag.

Carrying bag for the PM65 Eas Go Vac Apirator.

High Flow Three-In-One Flowmeter Adapter. Versatile triple tubing connection adapter.

Oxygen Sensor is a replacement part.
