Precision Medical

HeliO2 Blender is the only free-standing pneumatic blending device on the market today. Ability to turn bleed control collar ON or OFF provides +/- 3% FIO2 accuracy as well as quieter operation. HeliO2 Low Flow Blender features include: * FIO2 Range: 20-100% or 30-100% (see specific item detail) * Dimensions: 4.92in D x 2.25in W x 4.10in H * Weight: 2.9lbs * Operating Temperature: 59°F to 104°F * FIO2 Accuracy: +/-3% of full scale * Bypass Alarm Activation: 18-22 PSI (1.2-1.5 bar) * Primary Outlet Flow Range: 3-30 LPM * Auxiliary Outlet Flow Range: 0-30 LPM * Inlet Pressure Range: 30 - 75 PSI (2.1 - 5.2 bar); Heliox and Oxygen within 10 PSI (0.67 bar) of each other * Inlet Fitting: Female DISS or NIST * Bleed Flow at 50 psi (3.4 bar): 3 LPM or less * Maximum Combined Flow: ≥30 lpm * Primary Outlet Ports: 1 * Auxiliary Outlet Ports: 1 HeliO2 High Flow Blender features include: * FIO2 Range: 20-100% or 30-100% (see specific item detail) * Dimensions: 4.92in D x 2.25in W x 4.10in H * Weight: 2.9lbs * Operating Temperature: 59°F to 104°F * FIO2 Accuracy: +/-3% of full scale * Bypass Alarm Activation: 13-25 PSI (0.9-1.7 bar) * Primary Outlet Flow Range: 15-120 LPM * Auxiliary Outlet Flow Range: 2-100 LPM * Inlet Pressure Range: 30 - 75 PSI (2.1 - 5.2 bar); Heliox and Oxygen within 10 PSI (0.67 bar) of each other * Inlet Fitting: Female DISS or NIST * Bleed Flow at 50 psi (3.4 bar): 13 LPM or less * Maximum Combined Flow: ≥120 lpm * Primary Outlet Ports: 1 * Auxiliary Outlet Ports: 1

Pole stand with cylinder holder and accessory basket for blenders.

Wall mount assembly designed for oxygen/air blender (PM5200 and PM5300).

Ferrule features include: * .500-inch ID * Fits 1/4-inch ID hose

DISS Tee Assembly has a maximum pressure rating of 200 PSI.

Coil Cable is a replacement part/accessory.

Battery Charger is a replacement part as detailed in user manual.

Hose designed for medical air delivery.

Medical Air Quick Connect Coupler has a maximum pressure rating of 200 PSI and all pipe fittings are National Pipe Threads..

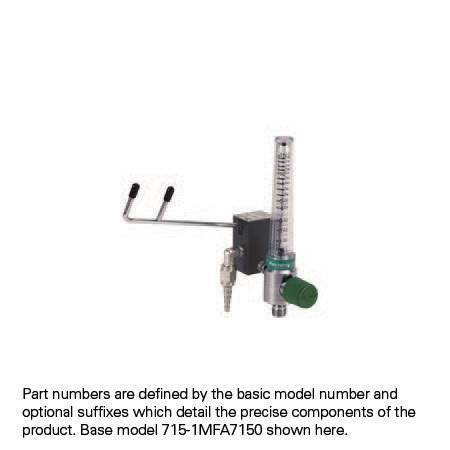

Features: * Eliminators resuscitation bag hanger turns on flow when the bag is removed for use, eliminating the need for continuous high oxygen flow to the bag. * When time is critical, you dont want to be hooking up equipment. With the eliminator you simply lift up the bag and flow begins instantly. * The standard configuration is available in three (3) pre-set flows. A fixed-flow barb controls flow to the resuscitation bag. The flowmeter operates independent of the Eliminator and can be used for oxygen treatments.

Key Benefits: * 6 feet in length

The unique modular design makes repair a breeze for any biomed or central supply department. The unit is made up of six (6) easy-to-replace modular components. Unlike the normal plastic inlet and outlet connections on most units, the cast metal backplate connections are extremely durable, thereby saving unnecessary repair costs. Made of strong plastic, it features a smooth surface with rounded corners making cleaning easy. The case also houses the gauge for extra protection. The PMX Series features a large gauge that is 50% larger than the PM Series gauge. The large control knob and easy-to-read settings make vacuum adjustments simple. The Pediatric vacuum regulator is restricted to 170 mmHg (± 10 mmHg) to prevent high vacuum situations and the gauge face is imprinted with the Precision Medical's 'Stork Symbol” to identify the unit for pediatric applications. For additional configurations, please contact your account manager Features: * Analog or Digital Gauge * Continuous 3 Mode Vacuum Regulator * 0-200 or 0-300 mmHg Gauge Range * Chemetron Quick Connect Vacuum Source Connection * Wide Range of Patient Connections * Gauge Accuracy * Analog: ± 5% of MAX * Digital Gauge: ± 1% of Full Scale

Vertical Pole Mount is an accessory part. Includes hand tight knob.

Durable The lack of a flow tube and the durable metal body prevent the breakage problems long associated with standard flowmeters. Compact The compact size allows the unit to fit into tight headwall areas and makes it virtually damage-proof when other equipment is installed. Accurate Accuracy is assured at every flow setting without the need for a visible float as in thorpe tube flowmeters. User-Friendly The knurled flow adjustment knob and the large easy-to-read numbers make flow adjustment easy. Versatile The unit is available for headwall outlets as well as for ceiling mount drops. It comes in two different flow ranges: .5-15 L/min with flush and 1-25 L/min. Specifications for the 0-15 LPM Models: * Position Increments (LPM): Off, .5, 1, 2, 3, 4, 5, 6, 8, 10, 15 and Flush Specifications for the 0-25 LPM Models: * Position Increments (LPM): Off, 1, 2, 3, 4, 6, 8, 10, 12, 15, 20 and 25 **Note: There is no flow between settings.

Durable The polycarbonate housings are extremely durable. They are impervious to chemical solutions normally used in a clinical setting preventing clouding and spidering. The polycarbonate flow tubes ensure durability. Accurate Our flowmeters use black glass flow indicator balls. Their exceptional sphericity and uniform weight contribute to a more accurate flowmeter than those using plastic floats. Precise Highly accurate needle valves ensure precise flow-settings the first time...every time. Easy to Use The flow control knob is on the front of the flowmeter in clear sight of the operator unlike side mount knobs which are susceptible to damage during installation of additional equipment. Our black glass float makes the flow setting easy to read. Dependable The housings and flow tubes carry a lifetime warranty and the needle valves carry a five-year warranty. Specifications: * Scale: 2-26 LPM * Increments: 1 LPM from 2 to 26 LPM * Accuracy: ±0.5 LPM for 2-4 LPM ±10% from 5-26 LPM * Flush Flow: 60-80 LPM

The PMX3300 Series Continuous-Intermittent 3 Mode provides reliable and accurate cycling of the regulator On and Off during the intermittent suctioning and has a peak vacuum limit feature to prevent adjusting too high. This series is ideal for sensitive applications where limiting Max vacuum is critically important. The intermittent timing cycle is factory set at 16 seconds on and 8 seconds off. The unique modular design makes repair a breeze for any biomed or central supply department with each unit made of eight (8) easy-to-replace modular components. Unlike the normal plastic inlet and outlet connections on most units, the cast metal backplate connections are extremely durable. The case is made of strong plastic and features a smooth surface with rounded corners for easy cleaning and houses the gauge for extra protection. Large gauge size makes it easy to see suction pressure. The PMX3300 Series Continuous-Intermittent 3 Mode gauge is 50% larger than the PM Series gauge. The large control knob with its three (3) easy-to-read settings make vacuum adjustments simple, even in emergency situations. The Pediatric vacuum regulator is restricted to 170 mmHg (±10 mmHg) to prevent high vacuum situations and the gauge face is imprinted with the Precision Medical's 'Stork Symbol” to identify the unit for pediatric applications. For additional configurations, please contact your account manager. Features: * Analog or Digital Gauge * Continuous-Intermittent 3 Mode * 0-200 or 0-300 mmHg Gauge Range * Gauge Accuracy * Analog: ± 5% of MAX * Digital Gauge: ± 1% of Full Scale * Chemetron Quick Connect Vacuum Source Connection * Wide Range of Patient Connections

NPT Pipe Fitting, Conenctor, 1/8 NPTF X 1/8 NPTM X 2.5 in Long

Coupler features include: * 1/8 NPT Female x 1/8 NPT Female * Maximum Pressure - 200 PSI

Features: * Eliminators resuscitation bag hanger turns on flow when the bag is removed for use, eliminating the need for continuous high oxygen flow to the bag. * When time is critical, you dont want to be hooking up equipment. With the eliminator you simply lift up the bag and flow begins instantly. * The standard configuration is available in three (3) pre-set flows. A fixed-flow barb controls flow to the resuscitation bag. The flowmeter operates independent of the Eliminator and can be used for oxygen treatments.

Vacuum Quick Connect Adapter has a maximum pressure rating of 200 PSI.

WAGD compact ohmeda style check unit.

Medical Air Quick Connect Wye features include: * Ohmeda Wye Block Assembly - 2 Ohmeda Couplers * Maximum Pressure - 200 PSI

The HFOT Flowmeter, Manifold and Bracket Set-Up. Set Includes: * (1) Quad block with one DISS hand tight O2 connection on top and three diss male one way valves on bottom * (1) 70LPM flowmeter, attached to pole mount * (2) 3ft O2 hoses, diss hand tight on both ends * (1) 9ft O2 hose, diss hand tight on both ends

HeliOx Regulator is an accessory part.
